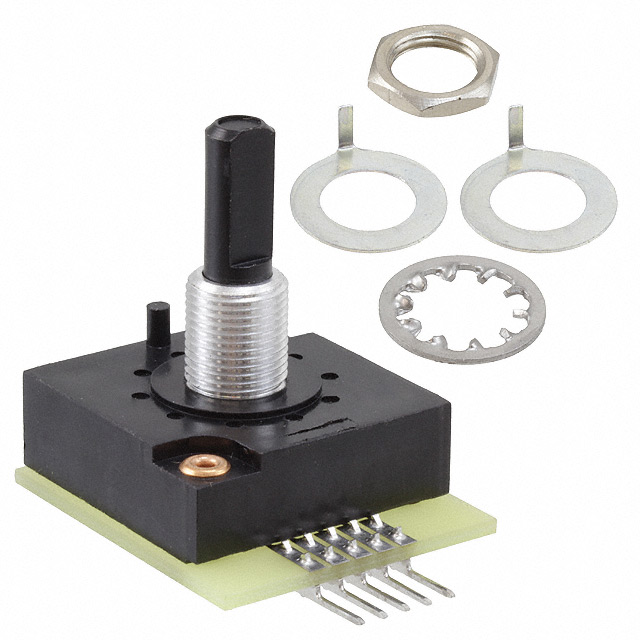

435984-1
Or copy the link below:
- Mfr.Part #
- 435984-1
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 10POS 125MA 115V
- Stock
- 31,829
- In Stock ：
- 31,829
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- Max Operating Temperature :
- 88°C
- Mount :
- PCB, Panel, Through Hole
- REACH SVHC :
- Unknown
- Length :
- 30.48mm
- Radiation Hardening :
- No
- Number of Positions :
- 10
- Switch Type :
- ROTARY CODED SWITCH
- Current Rating (Amps) :
- 125mA AC
- Number of Decks :
- 1
- Actuator Color :
- Black
- Voltage - Rated AC :
- 115V
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- ECCN Code :
- EAR99
- Contact Current Rating :
- 125mA
- Body Color :
- Black
- Mounting Type :
- Panel Mount, Through Hole
- Termination Style :
- PC Pin
- Contact Voltage(DC)-Max :
- 20V
- Factory Lead Time :
- 3 Weeks
- HTS Code :
- 8536.50.90.20
- Contact Finish :
- Gold
- Additional Feature :
- PANEL MOUNT-THREADED ALSO AVILABLE
- Throw Configuration :
- SP10T
- Lead Free :
- Contains Lead
- Actuator Material :
- Thermoplastic
- Operating Force :
- 5.761 ~ 23gfm
- Housing Material :
- Polyester
- ELV :
- Non-Compliant
- Series :
- 3100
- Contact Material :
- Phosphor Bronze
- Depth Behind Panel :
- 13.34mm
- Circuit per Deck :
- BCD
- Electrical Life :
- 25000 cycles
- Contact (DC) Max Rating R Load :
- .02A@20VDC
- PCB Hole Count :
- 2
- Depth :
- 38.74mm
- Number of Switch Sections :
- 1
- Orientation :
- Vertical
- Contact Resistance :
- 150mOhm
- Min Operating Temperature :
- -18°C
- Index Stops :
- Continuous
- Termination :
- PC Pins
- Panel Cutout Dimensions :
- Circular - 9.58mm Dia
- Max Voltage Rating (AC) :
- 115V
- Current Rating :
- 125mA
- Index Angle :
- 36 °
- Dielectric Withstanding Voltage :
- 500VDC V
- Contact Current(DC)-Max :
- 0.02A
- Contact Timing :
- NOT SPECIFIED
- Published :
- 1997
- RoHS Status :
- Non-RoHS Compliant
- Actuator Length :
- 14.88mm
- Body Breadth :
- 28.58 mm
- Actuator Type :
- Flatted (6.35mm Dia)
- Max Current Rating :
- 125mA
- Datasheets
- 435984-1
