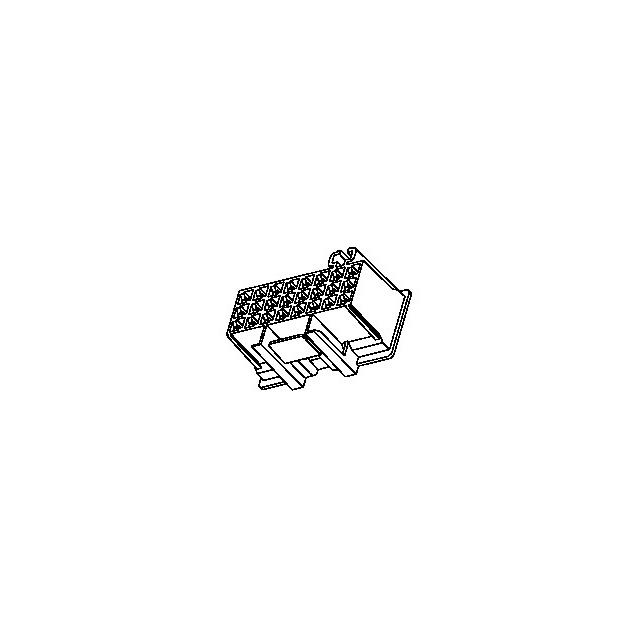

43275-1024
Or copy the link below:
- Mfr.Part #
- 43275-1024
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- SABRE FEMALE RCPT HSG V-2 14-18
- Stock
- 10,208
- In Stock ：
- 10,208
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Blade Type Power Connector Housings
- Contact Finish Termination :
- Tin (Sn) - with Nickel (Ni) barrier
- RoHS :
- Compliant
- Insulator Color :
- Natural
- Contact Gender :
- FEMALE
- Product Height (mm) :
- 21.08(mm)
- Termination Style :
- Crimp
- JESD-609 Code :
- e3
- Connector Type :
- RECTANGULAR POWER CONNECTOR
- Body Orientation :
- Straight
- Product Status :
- Active
- Contact Plating :
- Tin
- Durability :
- 25 Cycles
- Manufacturer :
- Molex
- Housing Color :
- Natural
- Pitch (mm) :
- 5.59(mm)
- Contact Style :
- BLADE PIN-SKT
- Operating Temp Range :
- -40C to 75C
- Series :
- 43275
- Housing Material :
- Nylon
- Additional Feature :
- RoHS Compliant
- Body Breadth :
- 1.182 inch
- Maximum Operating Temperature :
- + 75 C
- Type :
- Housing
- Reach Compliance Code :
- Compliant
- Subcategory :
- Headers and Wire Housings
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 2 years ago)
- Reliability :
- COMMERCIAL
- Glow Wire Compliant :
- Non-Compliant
- Total Number of Contacts :
- 24
- Gender :
- Receptacle
- Min Operating Temperature :
- -40 °C
- Current Rating :
- 9 A
- Lead Pitch :
- 5.59 mm
- HTS Code :
- 8536.69.40.30
- Reference Standard :
- CSA, UL
- Contact Arrangement :
- S0P24
- Mounting Option 1 :
- GUIDE SLOT
- Number of Circuits :
- 15
- Package :
- Box
- Dielectric Withstanding Voltage :
- 5000VAC V
- Termination Type :
- Crimp
- Application :
- Signal
- Insertion Force-Max :
- 13.344 N
- Color :
- Black
- Number of Contact Rows :
- 3
- Product Depth (mm) :
- 30.04(mm)
- Tradename :
- Flat Blade
- Lifecycle Status :
- Production (Last Updated: 2 years ago)
- Contact Resistance :
- 10 MΩ
- Flammability Rating :
- UL94 V-2
- Minimum Operating Temperature :
- - 40 C
- Insulation Resistance :
- 1000000000 Ω
- Contact Material :
- Brass
- Number of Rows :
- 3
- Mounting Style :
- Cable Mount / Free Hanging
- Termination :
- Crimp
- Body/Shell Style :
- PLUG
- Body Depth :
- 0.83 inch
- Pitch :
- 5.59 mm
- Mounting Option 2 :
- LOCKING
- Withdrawl Force-Min :
- 4.448 N
- Brand :
- Molex
- Country of Origin :
- US
- Mounting Type :
- CABLE
- Number of Positions :
- 24
- Max Operating Temperature :
- 75 °C
- Product Type :
- Headers and Wire Housings
- Mixed Contacts :
- yes
- Orientation :
- Vertical
- ECCN Code :
- EAR99
- Product Category :
- Headers and Wire Housings
- Product :
- Wire Housings
- Mount :
- CABLE
- Panel Mount :
- No
- Packaging :
- Bag
- Product Length (mm) :
- 48.51(mm)
- Number of Contacts :
- 24(POS)
