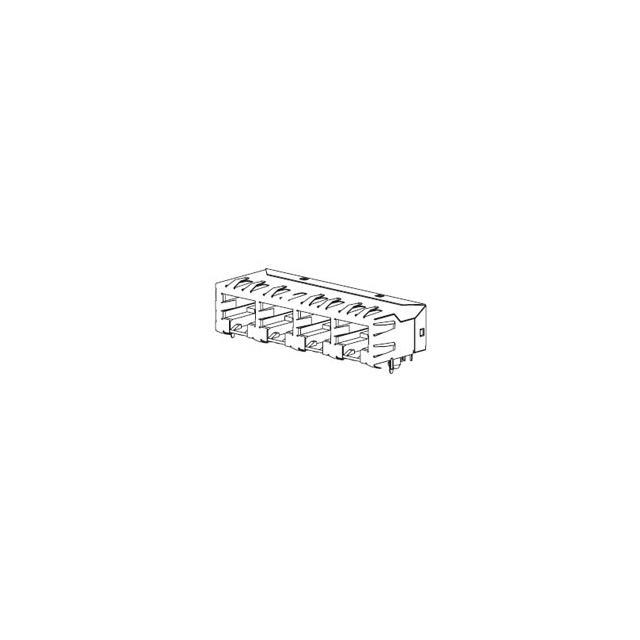

43223-6104

Manufacturer :

Molex

Product Category :

Modular Connector Jacks

Packaging :

Tray

Subcategory :

Telecom and Datacom Connectors

Product Depth (mm) :

20.57(mm)

IEC Conformance :

No

Number of Ports :

3(Port)

Plating Thickness :

50u inch

Mounting Style :

Through Hole

Board Mounting Option :

SPLIT BOARD LOCK

Gender :

Receptacle

RoHS :

Compliant

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Empty Shell :

No

HTS Code :

8536.69.40.30

Current Rating (Max) :

1.5/Contact(A)

Voltage Rating Max :

150VAC

Contact Plating :

Gold

Product Height (mm) :

12.83(mm)

Dielectric Withstanding Voltage :

1000VAC V

ECCN Code :

EAR99

Flammability Rating :

UL94 V-0

Shell Material :

Brass

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

MIL Conformance :

No

Country of Origin :

US

Shell Finish :

Nickel

Termination Method :

Solder

Product Length :

38.94 mm

Contact Material :

Phosphor Bronze

Mounting Type :

BOARD

Insulator Color :

Black

Factory Lead Time :

8 Weeks

Total Number of Contacts :

18

Pitch (mm) :

1.02(mm)

Max Operating Temperature :

85 °C

Additional Feature :

3 PORT, 6-POSITION EACH

UL Flammability Code :

94V-0

Product Status :

Active

Mixed Contacts :

No

Housing Color :

Black

Plating :

Tin

Category Number :

Cat 3

Mounting :

Through Hole

Number of Contacts :

18(POS)

Option :

GENERAL PURPOSE

Current Rating :

1.5 A

Contact Gender :

FEMALE

Package :

Box

Connector Type :

TELECOM AND DATACOM CONNECTOR

Base/Housing Material :

Thermoplastic

Reach Compliance Code :

Compliant

Manufacturer :

Molex

Durability :

500 Cycles

Voltage Rating (AC) :

150 V

Shielding :

Unshielded

Housing Material :

Thermoplastic

Operating Temp Range :

-40C to 85C

Body Orientation :

RIGHT ANGLE

Pitch :

1.0200 mm

Reference Standard :

CSA, UL

Radiation Hardening :

No

Type :

RJ-11

Operating Temperature :

-40 to 85 °C

Body/Shell Style :

JACK

Filter Feature :

No

DIN Conformance :

No

Family :

43223

Termination :

Through Hole

Reliability :

COMMERCIAL

Min Operating Temperature :

-40 °C

Orientation :

RIGHT ANGLE

Positions Loaded :

18

Product Length (mm) :

38.94(mm)

Number of Terminals :

18

Color :

Black

Rated Current (Signal) :

1.5 A

Contact Resistance :

10 MΩ

Termination Type :

Solder

Contact Style :

TELCOM, MODULAR

Mount :

Through Hole

Pbfree Code :

yes

Insulation Resistance :

500000000 Ω

Number of Positions :

6
