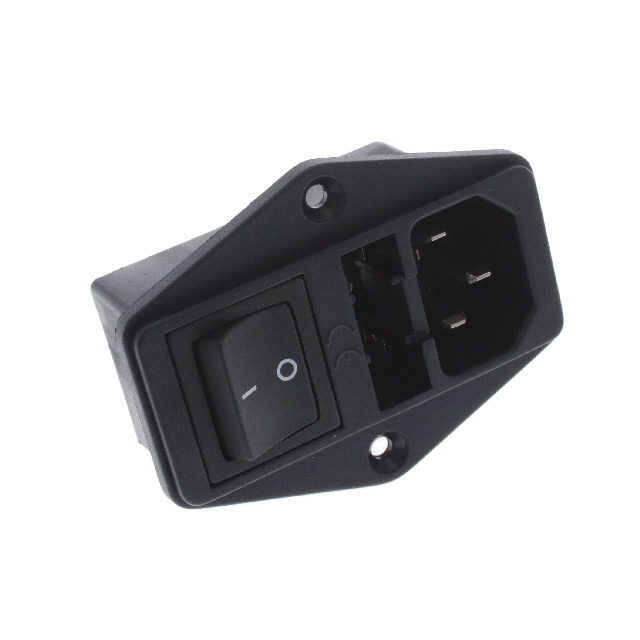

4304.6058

Manufacturer :

SCHURTER

Product Category :

Power Entry Modules (PEM)

Radiation Hardening :

No

RoHS Status :

ROHS3 Compliant

Option :

GENERAL PURPOSE

IEC Conformance :

yes

Series :

6762

Accomodates a Fuse :

Yes (Fuse Not Included)

Filter Type :

Unfiltered - Commercial

Max Voltage Rating (AC) :

250V

ECCN Code :

EAR99

Connector Style :

IEC 320-C14

Number of Ports :

1

Connector Type :

Receptacle, Male Blades - Module

Voltage - Rated DC :

250V

Flammability Rating :

UL94 V-0

Mount :

Flanges, Panel

Max Operating Temperature :

70°C

Gender :

Male

Current :

10A

Number of Positions :

3

Package / Case :

Module

Orientation :

Straight

Housing Material :

Polyamide

Max Current Rating :

10A

Voltage - IEC :

250VAC

Fuse :

yes

Coupling Type :

Snap

Switch Features :

Switch On-Off

DIN Conformance :

No

Packaging :

Bulk

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Material Flammability Rating :

UL94 V-0

Weight :

30.709989g

Ingress Protection :

IP40

Mounting Type :

Panel Mount, Flange

Length :

50mm

Moisture Sensitivity Level (MSL) :

Vendor Undefined

Current Rating :

10A

MIL Conformance :

No

Approval Agency :

cCSAus, ENEC, UL

Total Number of Contacts :

3

Fuse Holder, Drawer :

Fuse Holder

Min Operating Temperature :

-25°C

Panel Cutout Dimensions :

Rectangular - 27.50mm x 59.00mm

Termination :

Quick Connect - 0.189 (4.8mm)

Voltage - Rated AC :

250V

Factory Lead Time :

13 Weeks
