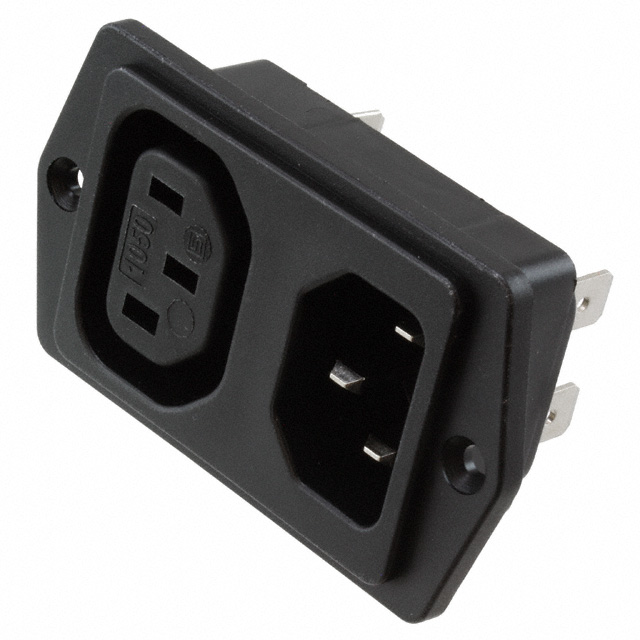

4304.6002

Manufacturer :

SCHURTER

Product Category :

Power Entry Modules (PEM)

Current Rating :

15A

Current - IEC :

10A

Approval Agency :

cCSAus, SEMKO, UL

Voltage - Rated DC :

250V

Number of Ports :

2

Accomodates a Fuse :

No

Min Operating Temperature :

-25°C

Shell Material :

PA6

Series :

1050

Color :

Black

Length :

70mm

Voltage - Rated AC :

250V

Material Flammability Rating :

UL94 V-0

MIL Conformance :

No

Ingress Protection :

IP20

Max Operating Temperature :

70°C

Packaging :

Bulk

Body/Shell Style :

PLUG

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

Vendor Undefined

Number of Positions :

3 per connection (2)

Termination :

Quick Connect - 0.250 (6.3mm)

ECCN Code :

EAR99

Weight :

31.599994g

Connector Style :

IEC 320-2-2/F; IEC 320-C14

Connector Type :

Receptacle, Female Sockets; Receptacle, Male Blades

Contact Plating :

Tin

Housing Material :

Polyamide

Coupling Type :

Snap

Number of Contacts :

3

Max Current Rating :

15A

Contact Gender :

Female and Male

Mounting Type :

Panel Mount, Flange

Ratings :

IP20, IP30

Voltage - IEC :

250VAC

Max Voltage Rating (AC) :

250V

RoHS Status :

ROHS3 Compliant

Flammability Rating :

UL94 V-0

Orientation :

Straight

IEC Conformance :

yes

Panel Cutout Dimensions :

Rectangular - 32.20mm x 49.20mm

Filter Type :

Unfiltered - Commercial

Voltage :

250V

Mount :

Flanges, Panel, Screw

Package / Case :

Module

Option :

GENERAL PURPOSE

Current :

15A
