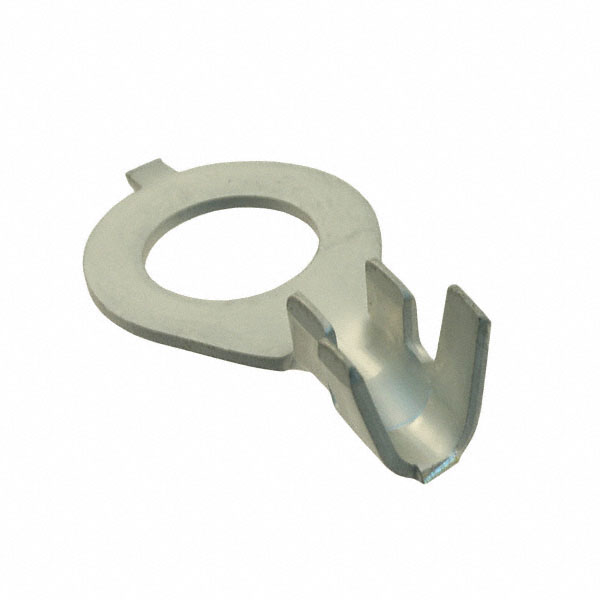

42947-2
Or copy the link below:
- Mfr.Part #
- 42947-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- 405
- Datasheet
- Download
- Description
- CONN RING OVAL 8-12AWG CRIMP
- Stock
- 10,258
- In Stock ：
- 10,258
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Insulation :
- Non-Insulated
- Material Thickness :
- 1.016mm
- Stud Diameter :
- 10.29 mm
- Length - Overall :
- 1.245 31.62mm
- Wire Gauge (Min) :
- 12 AWG
- Depth :
- 17.45mm
- Contact Finish :
- Tin
- Thickness :
- 0.040 1.02mm
- ECCN Code :
- EAR99
- Length :
- 31.623mm
- Mount :
- Free Hanging
- Wire Gauge (Max) :
- 8 AWG
- Packaging :
- Tape and Reel (TR)
- Contact Material :
- Brass
- Terminal and Terminal Block Type :
- RING TERMINAL
- Wire Cross Section :
- 8 mm2
- ELV :
- Compliant
- Insulation Diameter :
- 0.150 ~ 0.220 (3.81mm ~ 5.59mm)
- Lead Free :
- Not Applicable
- Mounting Type :
- Free Hanging (In-Line)
- Factory Lead Time :
- 4 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Wire Gauge :
- 8-12 AWG
- Published :
- 2004
- Number of Holes :
- 1
- RoHS Status :
- RoHS Compliant
- Width - Outer Edges :
- 0.687 17.45mm
- Diameter - Inside :
- 3.81 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal Type :
- Oval
- Termination :
- Crimp
- Heavy Duty :
- No
- Package / Case :
- 405
- Tongue Thickness :
- 1.016mm
- HTS Code :
- 8536.90.40.00
- Insulated Wire Support :
- yes
- Underplate Material :
- Nickel
- Datasheets
- 42947-2
42947-2 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
