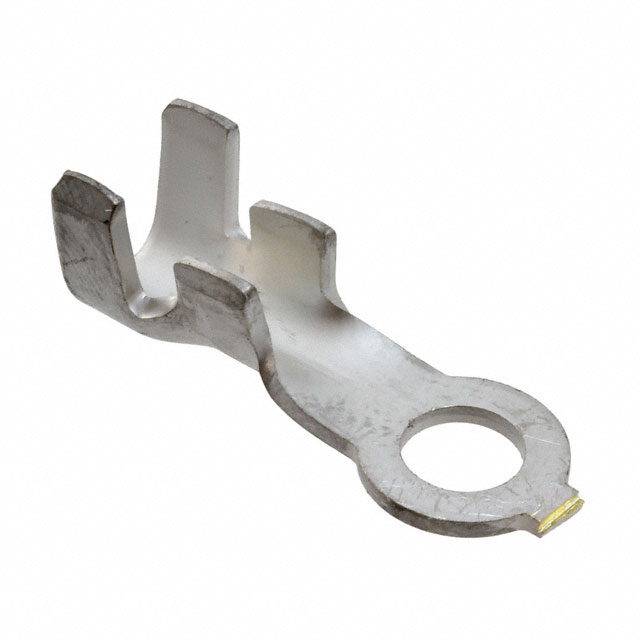

42864-2
Or copy the link below:
- Mfr.Part #
- 42864-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 10-12AWG #10
- Stock
- 7,719
- In Stock ：
- 7,719
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Stud Diameter :
- 5 mm
- RoHS Status :
- RoHS Compliant
- Packaging :
- Tape and Reel (TR)
- Heavy Duty :
- No
- HTS Code :
- 8536.90.40.00
- Orientation :
- Straight
- Diameter - Inside :
- 2.54 mm
- Contact Material :
- Brass
- Insulation Diameter :
- 0.170 ~ 0.210 (4.32mm ~ 5.33mm)
- Tongue Thickness :
- 1.016mm
- Stud/Tab Size :
- 10 Stud
- Length :
- 23.3934mm
- Depth :
- 8.71mm
- Wire Gauge (Max) :
- 12 AWG
- Wire/Cable Diameter :
- 5.33 mm
- Lead Free :
- Lead Free
- REACH SVHC :
- No SVHC
- Mount :
- Free Hanging
- Terminal and Terminal Block Type :
- RING TERMINAL
- Contact Plating :
- Tin
- Length - Overall :
- 0.921 23.39mm
- ECCN Code :
- EAR99
- Insulation :
- Non-Insulated
- Width - Outer Edges :
- 0.343 8.71mm
- Mounting Type :
- Free Hanging (In-Line)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Thickness :
- 0.040 1.02mm
- Terminal Type :
- Circular
- Wire Gauge (Min) :
- 10 AWG
- Material Thickness :
- 1.016mm
- Number of Holes :
- 1
- Termination :
- Crimp
- Insulated Wire Support :
- yes
- Factory Lead Time :
- 9 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Wire/Cable Gauge :
- 10 AWG
- Pbfree Code :
- yes
- Published :
- 2004
- Wire Gauge :
- 10-12 AWG
- Datasheets
- 42864-2
42864-2 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
