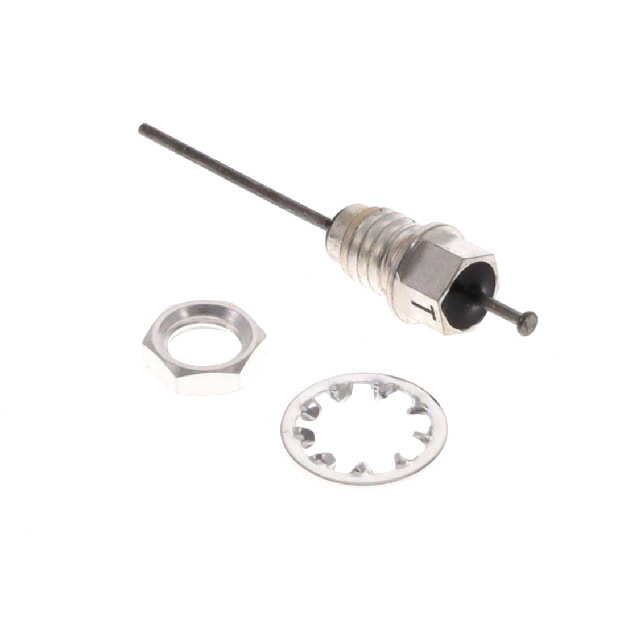

4209-053

Share

Or copy the link below:

Mfr.Part #
4209-053
Manufacturer
CTS Corporation
Package / Case
Axial, Bushing, 1 Turret Lead
Datasheet
Download
Description
FILTER LC(PI) 5500PF CHASSIS
Stock
17,150
In Stock :
17,150

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
CTS Corporation
Product Category :
EMI/RFI Filters (LC, RC Networks)
Capacitance :
5nF
Current Rating :
10A
Size / Dimension :
0.250Diax0.517L 6.35mmx13.14mm
Values :
C = 5500pF
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Max Voltage Rating (DC) :
350V
Mounting Type :
Chassis Mount
Mount :
Panel, Through Hole
Termination :
Axial
Current :
10A
Diameter :
4.7498mm
REACH SVHC :
No SVHC
Voltage - Rated DC :
100V
Series :
4200
Length :
13.1318mm
Voltage - Rated AC :
100V
Applications :
Data Lines for Mobile Devices
Radiation Hardening :
No
Factory Lead Time :
12 Weeks
Max Current Rating :
10A
Number of Channels :
1
Attenuation Value :
65dB @ 100MHz
Max DC Current :
10A
Min Operating Temperature :
-55°C
Package / Case :
Axial, Bushing, 1 Turret Lead
RoHS Status :
RoHS Compliant
Filter Order :
3rd
ESD Protection :
No
Operating Temperature :
-55°C~125°C
Published :
2004
Type :
Low Pass
Packaging :
Bulk
Max Operating Temperature :
125°C
DC Resistance (DCR) :
10GOhm
Circuit Type :
Filter
Voltage - Rated :
100V
Height :
10.0838mm
Datasheets
4209-053
Introducing EMI/RFI Filters (LC, RC Networks) CTS Corporation 4209-053 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Chassis Mount, Number of Channels:1, Package / Case:Axial, Bushing, 1 Turret Lead, Operating Temperature:-55°C~125°C, Type:Low Pass, 4209-053 pinout, 4209-053 datasheet PDF, 4209-053 amp .Beyond EMI/RFI Filters (LC, RC Networks) CTS Corporation 4209-053 ,we also offer NFL18ST507X1C3D, NFE31PT222Z1E9L, NFL18ST506H1A3D, Our vast inventory has you covered. Contact us now for immediate solutions.

CTS Corporation 4209-053


4209-053LF datasheet pdf and EMI/RFI Filters (LC, RC Networks) product details from Tusonix a Subsidiary of CTS Electronic Components stock available at
