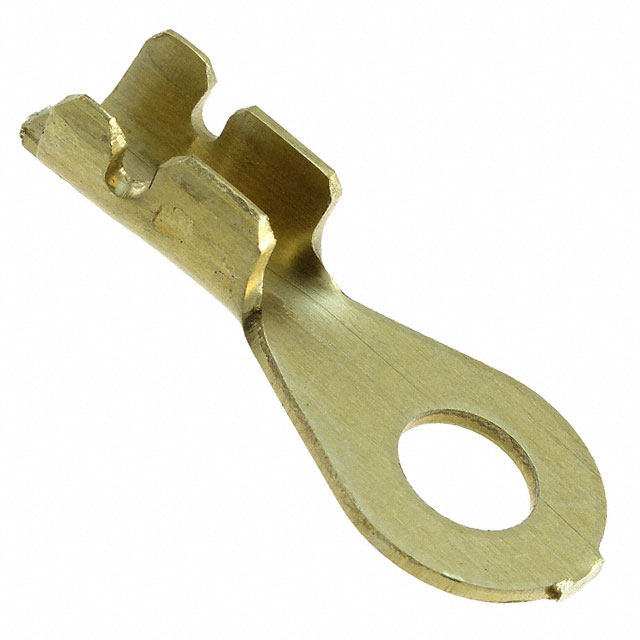

40660
Or copy the link below:
- Mfr.Part #
- 40660
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 14-18AWG #8 CRIMP
- Stock
- 610
- In Stock ：
- 610
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Length :
- 19.91mm
- Orientation :
- Straight
- Wire Gauge (Min) :
- 14 AWG
- Stud Diameter :
- 4.34 mm
- Heavy Duty :
- No
- Stud/Tab Size :
- 8 Stud
- Packaging :
- Tape and Reel (TR)
- Length - Overall :
- 0.784 19.91mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Width - Outer Edges :
- 0.342 8.69mm
- Terminal and Terminal Block Type :
- RING TERMINAL
- Wire Gauge (Max) :
- 18 AWG
- Factory Lead Time :
- 8 Weeks
- Mount :
- Free Hanging
- Stud Size :
- M4
- Termination :
- Crimp
- Insulation Diameter :
- 3.56 mm
- Contact Plating :
- Unplated
- Insulation :
- Non-Insulated
- RoHS Status :
- RoHS Compliant
- Lead Free :
- Not Applicable
- Wire Cross Section :
- 2 mm2
- Wire Gauge :
- 14-18 AWG
- Pbfree Code :
- yes
- Terminal Type :
- Circular
- Wire/Cable Diameter :
- 3.56 mm
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Depth :
- 8.69mm
- Number of Holes :
- 1
- Tongue Thickness :
- 762μm
- Material Thickness :
- 760μm
- Diameter - Inside :
- 1.52 mm
- Thickness :
- 0.029 0.74mm
- Contact Material :
- Brass
- Insulated Wire Support :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2004
- HTS Code :
- 8536.90.40.00
- Plating Thickness :
- 2.54μm
- Mounting Type :
- Free Hanging (In-Line)
- Datasheets
- 40660
40660 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
