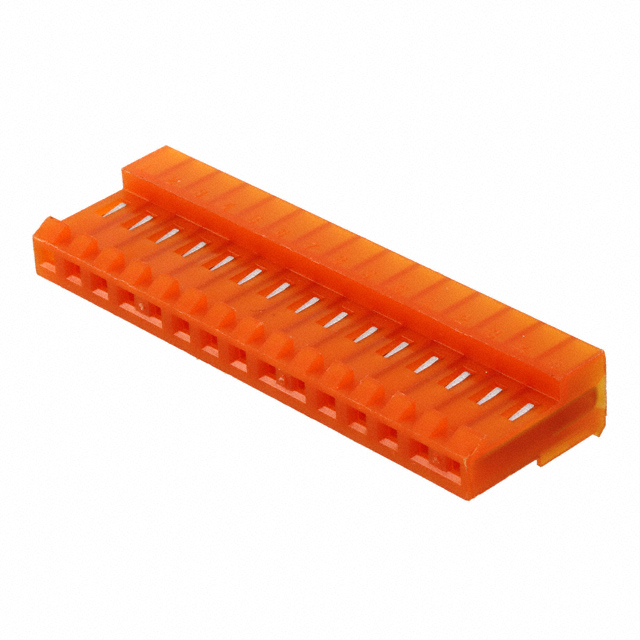

4-640426-5

Share

Or copy the link below:

Mfr.Part #
4-640426-5
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 15POS IDC 18AWG TIN
Stock
16,630
In Stock :
16,630

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Free Hanging, Panel Mount
IEC Conformance :
No
Lead Free :
Lead Free
RoHS Status :
RoHS Compliant
Depth :
9.02mm
Length :
59.44mm
Max Operating Temperature :
221°C
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Wire Type :
Discrete
Number of Rows :
1
Orientation :
RIGHT ANGLE
Min Operating Temperature :
-67°C
Filter Feature :
No
Cable Termination :
IDC
Housing Material :
Nylon
MIL Conformance :
No
Rated Current (Signal) :
7A
Approval Agency :
CSA
Circuit Application :
Power
Polarization Key :
POLARIZED HOUSING
Mounting Type :
Free Hanging (In-Line)
Packaging :
Bulk
Contact Resistance :
3mOhm
UL Flammability Code :
94V-2
Contact Type :
Female Socket
Insertion Force-Max :
8.0064 N
Housing Color :
Orange, White
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Insulation Diameter :
2.413 mm
Operating Supply Voltage :
600V
Color :
Orange
Max Voltage Rating (AC) :
600V
Durability :
25 Cycles
Termination :
IDC, IDT
Wire Gauge :
18 AWG
Contact Finish :
Tin
Reliability :
COMMERCIAL
Published :
2004
Lead Pitch :
3.96mm
Current Rating :
7A
Body Breadth :
0.355 inch
Factory Lead Time :
16 Weeks
Sealable :
No
Fastening Type :
Locking Ramp
JESD-609 Code :
e3
Wire/Cable Gauge :
18 AWG
Series :
MTA-156
Mount :
Cable, Free Hanging
Contact Current Rating :
7A
DIN Conformance :
No
Withdrawl Force-Min :
.8896 N
Voltage - Rated AC :
600V
Contact Retention :
With
Contact Gender :
FEMALE
Height :
9.02mm
Underplate Material :
Nickel
Contact Material :
COPPER ALLOY
Mixed Contacts :
No
Contact Finish Thickness :
80.0μin 2.03μm
Pitch :
0.156 3.96mm
Number of Power Positions :
15
Total Number of Contacts :
15
Dielectric Withstanding Voltage :
2200VAC V
Feature :
Closed End
Option :
GENERAL PURPOSE
Plating Thickness :
30μm
Flammability Rating :
UL94 V-2
Connector Type :
Receptacle
Datasheets
4-640426-5
Introducing Free Hanging, Panel Mount TE Connectivity AMP Connectors 4-640426-5 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), 4-640426-5 pinout, 4-640426-5 datasheet PDF, 4-640426-5 amp .Beyond Free Hanging, Panel Mount TE Connectivity AMP Connectors 4-640426-5 ,we also offer 3-640440-5, 04ZR-8M-P, 61201023021, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 4-640426-5


4-640426-5 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
