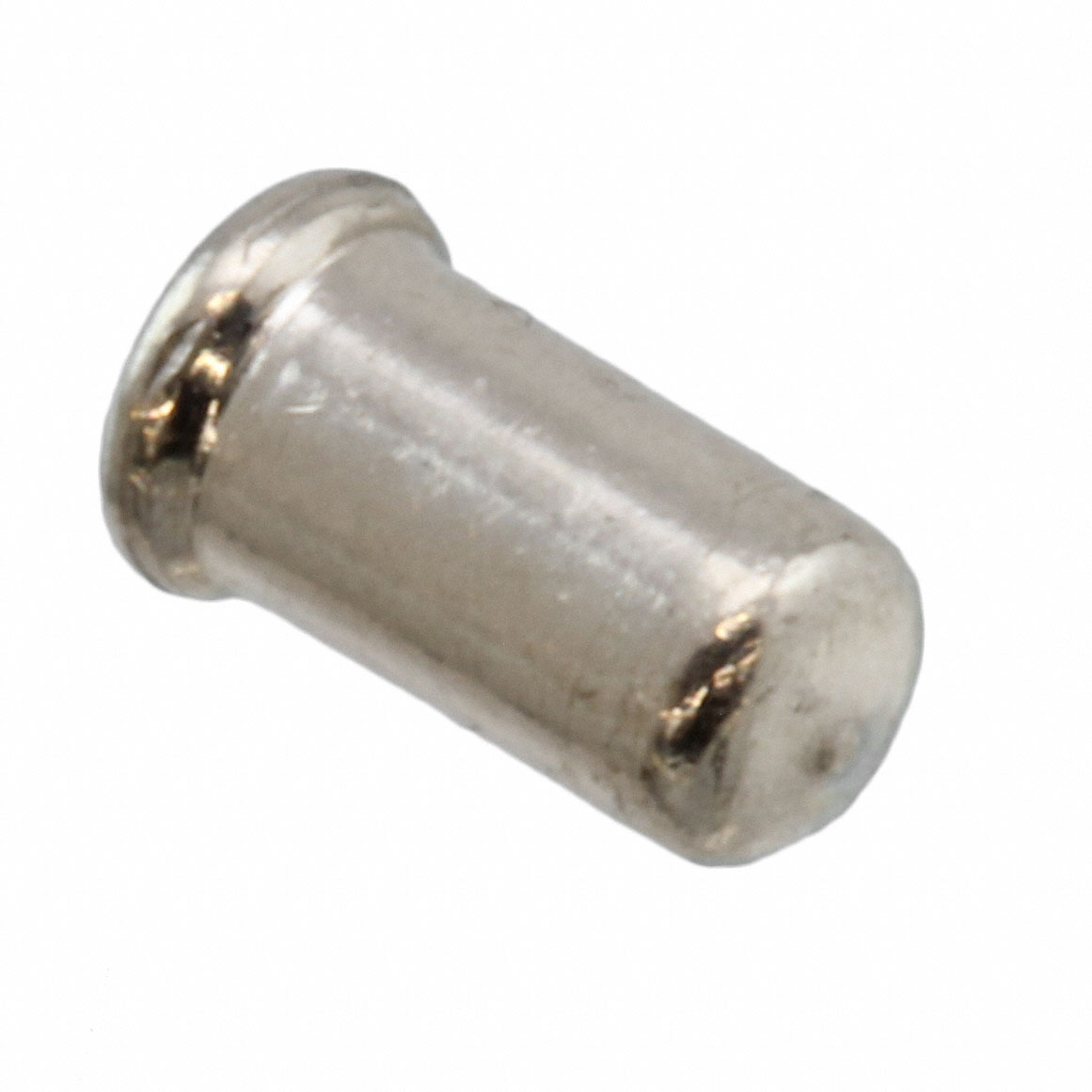

4-5332070-4
Or copy the link below:
- Mfr.Part #
- 4-5332070-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN RCPT .028-.033 SOLDER
- Stock
- 1,533
- In Stock ：
- 1,533
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- PC Pin Receptacles, Socket Connectors
- Mount :
- Surface Mount
- Length :
- 3.6322mm
- RoHS Status :
- RoHS Compliant
- Published :
- 2010
- Series :
- 4
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Tail Type :
- No Tail
- Accepts Pin Diameter :
- 0.028 ~ 0.033 (0.71mm ~ 0.84mm)
- Assembly Item Name :
- Contact
- Max Current Rating :
- 6.5A
- Wire/Cable Gauge :
- 20 AWG
- Sealable :
- No
- ECCN Code :
- EAR99
- Contact Gender :
- FEMALE
- PCB Thickness :
- 3.18mm
- Wire/Cable Type :
- Discrete
- Orientation :
- Straight
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Contacts :
- 1
- Contact Finish :
- Gold
- Length - Overall :
- 0.143 3.63mm
- Contact Material :
- BERYLLIUM COPPER
- Socket Depth :
- 0.130 3.30mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Packaging :
- Bulk
- Wire Size (Min) :
- 22 AWG
- Termination :
- Solder
- Connector Type :
- Socket
- Mounting Hole Diameter :
- 0.072 (1.83mm)
- Depth :
- 2.26mm
- Hole Diameter :
- 1.8288 mm
- DIN Conformance :
- No
- Connector Support Type :
- CONNECTOR ACCESSORY
- MIL Conformance :
- No
- Feature :
- Open Bottom
- Contact Current Rating :
- 6.5A
- Factory Lead Time :
- 19 Weeks
- Flange Diameter :
- 0.089 (2.26mm)
- Operating Temperature :
- -65°C~126°C
- ELV :
- Compliant
- Circuit Application :
- Power
- Pbfree Code :
- yes
- Plating Thickness :
- 30μm
- Datasheets
- 4-5332070-4
4-5332070-4 datasheet pdf and Terminals - PC Pin Receptacles, Socket Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
