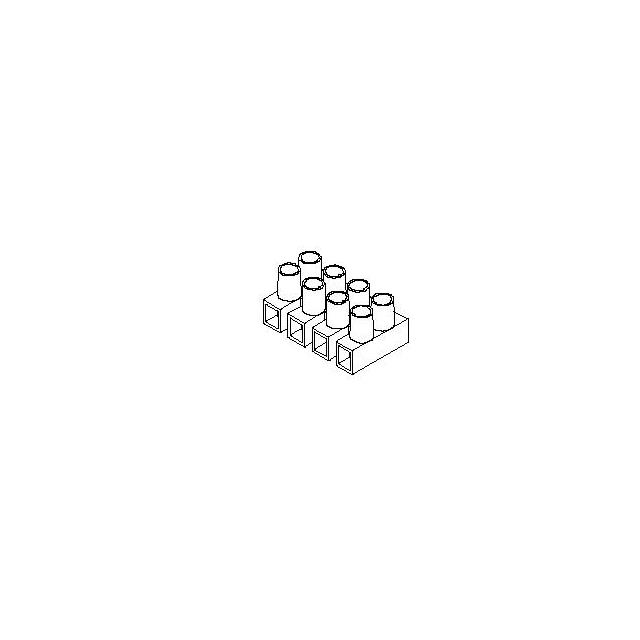

39100-1104

Manufacturer :

Molex

Product Category :

Barrier Blocks

Manufacturer :

Molex

Number of Contact Rows :

2

Number of Decks :

1

Product Depth (mm) :

18.8(mm)

HTS Code :

8536.69.40.40

Wire Gauge :

10-18(AWG)

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Safety Approval :

UL; CSA

Series :

*

Housing Material :

Nylon 6/6

Gender :

PL

Contact Material :

Brass

Number of Contacts :

8(POS)

Rad Hardened :

No

Rated Current :

30 A

Product Length (mm) :

37(mm)

Pbfree Code :

yes

Number of Ways :

4

Number of Rows :

2

Package :

Box

Body Orientation :

Straight

Mounting Style :

CABLE

Contact Plating :

Nickel

Current Rating (Max) :

30/Contact(A)

Fastening Method :

Screw

Housing Color :

Clear

Operating Voltage (Max) :

300V

Additional Feature :

NYLON, UL 94V-2, LOW PROFILE

Contact Pitch (mm) :

10(mm)

ECCN Code :

EAR99

Rated Voltage :

300 V

Termination Method :

Screw

Product Status :

Active

Product Height (mm) :

15.7(mm)

Reach Compliance Code :

Unknown

Type :

Eurostyle Block
