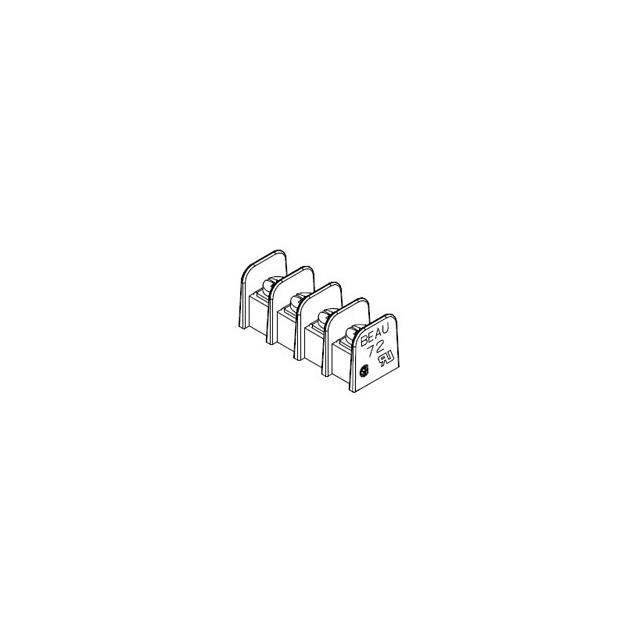

38720-0304

Manufacturer :

Molex

Product Category :

Barrier Blocks

Subcategory :

Terminal Blocks

Mounting Style :

CABLE

RoHS :

Details

Minimum Operating Temperature :

- 40 C

Operating Voltage (Max) :

300V

Current Rating (Max) :

15/Contact(A)

Length :

2.33 in

Height :

0.66 in

Product Depth (mm) :

16.8(mm)

Wire Gauge :

14-22(AWG)

Product Type :

Barrier Terminal Blocks

Termination Method :

Screw

Mounting :

Cable Mount

Number of Contacts :

4(POS)

Base/Housing Material :

Polyurethane

Number of Positions :

4 Position

Type :

Barrier Strip

Rad Hardened :

No

Operating Temp Range :

-40C to 130C

Product :

Barrier Terminal Blocks

Product Status :

Active

Wire Size :

22 to 14, 22 AWG

Color :

Black

Product Category :

Barrier Terminal Blocks

Current Rating :

15 A

Product Length (mm) :

40.2(mm)

Product Height (mm) :

15.7(mm)

Mounting Angle :

Horizontal

Contact Plating :

Tin/Zinc Chromate

Maximum Operating Temperature :

+ 130 C

Brand :

Molex

Housing Color :

Black

Number of Rows :

1 Row

Tradename :

Beau

Pitch :

9.5300 mm

Package :

Box

Contact Material :

Brass/Steel

Width :

0.62 in

Series :

*

Manufacturer :

Molex

Housing Material :

Thermoplastic (TP)

Contact Pitch (mm) :

9.53(mm)

Voltage Rating :

300 V

Body Orientation :

Straight

Operating Temperature :

-40 to 130 °C

Number of Contact Rows :

1
