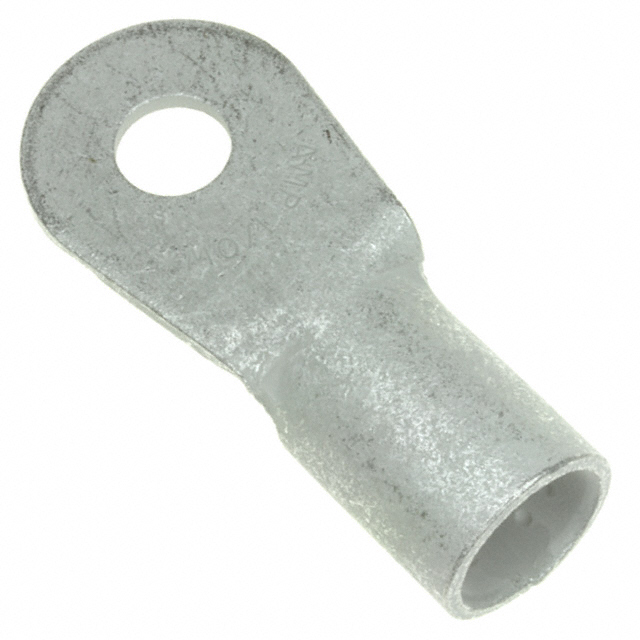

36916
Or copy the link below:
- Mfr.Part #
- 36916
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN RING CIRC 1/0AWG #5/16
- Stock
- 42,826
- In Stock ：
- 42,826
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- REACH SVHC :
- No SVHC
- Stud Size :
- M8
- Feature :
- Brazed Seam
- Length - Overall :
- 1.956 49.68mm
- Thickness :
- 0.070 1.78mm
- Wire/Cable Gauge :
- 0 AWG
- Number of Holes :
- 1
- HTS Code :
- 8536.90.40.00
- Lead Free :
- Lead Free
- Orientation :
- Straight
- Width - Outer Edges :
- 0.875 22.23mm
- Plating :
- Tin
- Insulation :
- Non-Insulated
- Depth :
- 22.23mm
- Factory Lead Time :
- 4 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal and Terminal Block Type :
- RING TERMINAL
- Stud Diameter :
- 8.3312 mm
- Series :
- Solistrand
- Tongue Thickness :
- 1.78mm
- Length :
- 49.784mm
- RoHS Status :
- RoHS Compliant
- Published :
- 1997
- Wire Cross Section :
- 60.6 mm2
- Diameter - Inside :
- 11.28 mm
- Heavy Duty :
- No
- Packaging :
- Bulk
- Wire Gauge :
- 1/0 AWG
- Hole Diameter :
- 8.3 mm
- Mounting Type :
- Free Hanging (In-Line)
- Material Thickness :
- 1.778mm
- Termination :
- Crimp
- Stud/Tab Size :
- 5/16 Stud
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Terminal Type :
- Circular
- Max Operating Temperature :
- 170°C
- Gender :
- FEMALE
- Pbfree Code :
- yes
- Package / Case :
- Metal
- ECCN Code :
- EAR99
- Contact Material :
- Copper
- Plating Thickness :
- 2.54μm
- Datasheets
- 36916
36916 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
