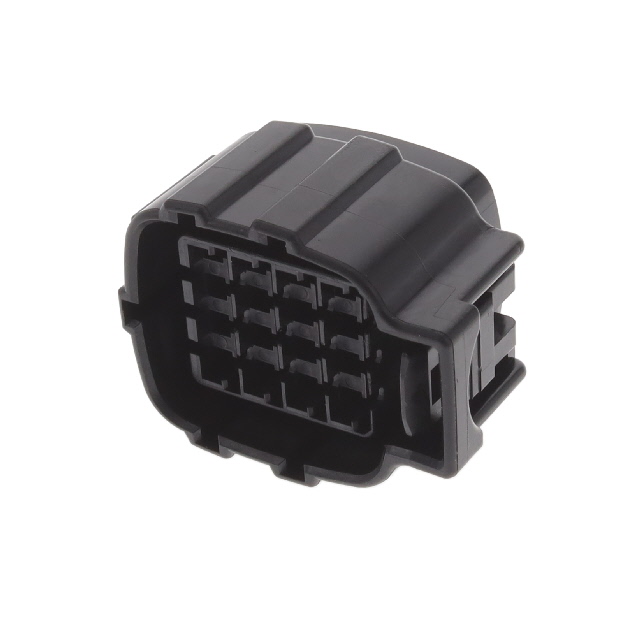

368047-1
Or copy the link below:
- Mfr.Part #
- 368047-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG 16POS 4.80MM
- Stock
- 1,534
- In Stock ：
- 1,534
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Pbfree Code :
- yes
- Width :
- 27.432mm
- Length :
- 30.48mm
- Wire Gauge (Min) :
- 20 AWG
- Wire/Cable Gauge :
- 24 AWG
- Min Operating Temperature :
- -30°C
- Gender :
- Male
- Row Spacing :
- 0.220 (5.60mm)
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Published :
- 2004
- Number of Positions :
- 16
- Mount :
- Cable, Free Hanging
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge (Max) :
- 16 AWG
- Lead Free :
- Lead Free
- Connector Type :
- PLUG
- Pitch :
- 0.189 4.80mm
- Max Operating Temperature :
- 105°C
- Orientation :
- Straight
- Housing Material :
- Polybutylene
- Number of Rows :
- 4
- Fastening Type :
- Locking Ramp
- ECCN Code :
- EAR99
- Circuit Application :
- Signal
- Contact Type :
- Female Socket
- Mating Tab Width :
- 1.1938mm
- ELV :
- Compliant
- Series :
- EconoSeal J Mark II
- Body Material :
- PBT
- Factory Lead Time :
- 14 Weeks
- Height :
- 44.4mm
- Color :
- Black
- RoHS Status :
- RoHS Compliant
- Polarized :
- yes
- Contact Termination :
- Crimp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Depth :
- 27.6mm
- Hybrid Connector :
- No
- Note :
- Contacts Not Included
- Packaging :
- Tray
- Datasheets
- 368047-1
4 Rows Plug Tray Black 16 Positions Free Hanging (In-Line) Female Socket Crimp EconoSeal J Mark II Polybutylene
368047-1 Overview
The product is packaged in Plug.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Tray case is necessary to package the product.There is a product in the EconoSeal J Mark II Series.Part Cable, Free Hanging is mounted to the part.
368047-1 Features
EconoSeal J Mark II series
368047-1 Applications
There are a lot of TE Connectivity AMP Connectors
368047-1 Rectangular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
