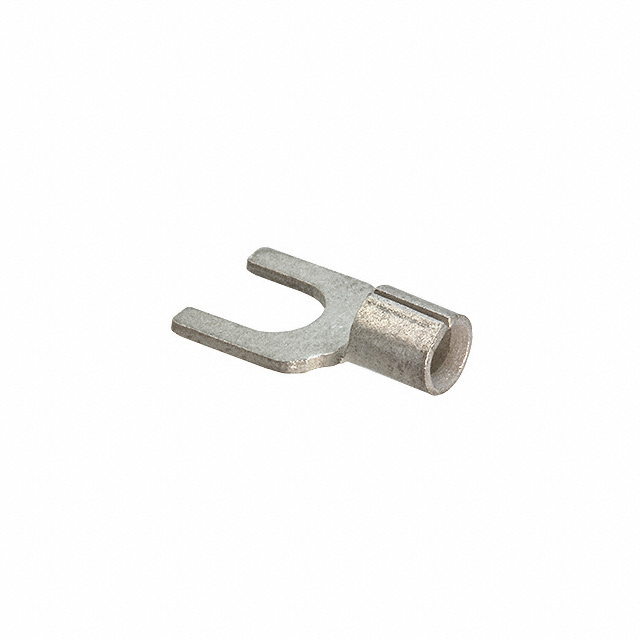

35116
Or copy the link below:
- Mfr.Part #
- 35116
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 14-16AWG #8
- Stock
- 17,616
- In Stock ：
- 17,616
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Stud Diameter :
- 4.34 mm
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge :
- 14-16 AWG
- Length :
- 13.48mm
- Length - Termination :
- 0.181 4.60mm
- Contact Material :
- Copper
- Length - Ring Center to Termination :
- 0.203 5.16mm
- ELV :
- Compliant
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 12 Weeks
- Insulated Wire Support :
- No
- Wire Gauge (Min) :
- 16 AWG
- Plating :
- Tin
- Terminal Type :
- Standard
- Material Thickness :
- 790μm
- Diameter - Inside :
- 2.26 mm
- Government Qualified :
- No
- Lead Free :
- Not Applicable
- Stud/Tab Size :
- 8 Stud
- Tongue Thickness :
- 790μm
- Length - Overall :
- 0.530 13.46mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Max) :
- 14 AWG
- Series :
- Budget
- Stud Size :
- M4
- Tongue Inside Opening :
- 0.171 (4.34mm)
- Contact Finish :
- Tin
- Material :
- Copper
- Published :
- 2009
- Packaging :
- Bulk
- Plating Thickness :
- 2.54μm
- Width - Outer Edges :
- 0.297 7.54mm
- Mount :
- Free Hanging
- Contact Plating :
- Tin
- Insulation :
- Non-Insulated
- Feature :
- Serrated Termination
- Heavy Duty :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Sealable :
- No
- Termination :
- Crimp
- Datasheets
- 35116
35116 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
