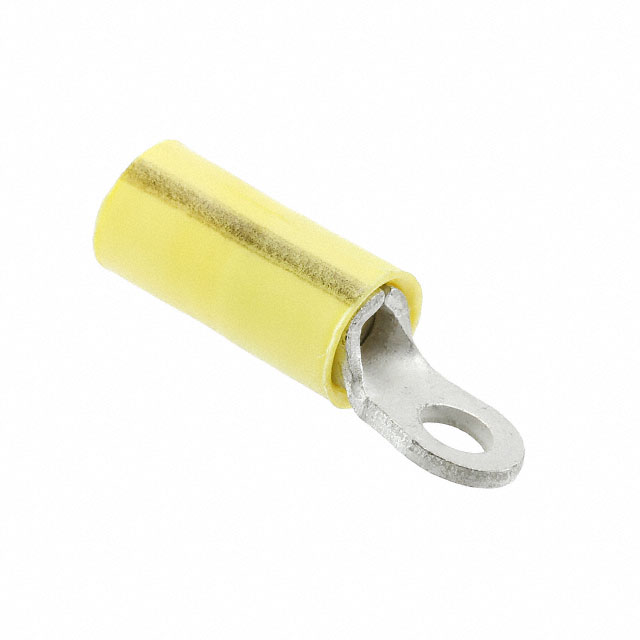

34821
Or copy the link below:
- Mfr.Part #
- 34821
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 14-16AWG #6 CRIMP
- Stock
- 1,156
- In Stock ：
- 1,156
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Length - Overall :
- 0.953 24.21mm
- Wire Gauge :
- 14-16 AWG
- Published :
- 2004
- Material Thickness :
- 1.2192mm
- Terminal Type :
- Circular
- Contact Material :
- Copper
- Mount :
- Free Hanging
- HTS Code :
- 8536.90.40.00
- Number of Holes :
- 1
- RoHS Status :
- RoHS Compliant
- Wire Gauge (Min) :
- 16 AWG
- Insulation Diameter :
- 0.105 ~ 0.200 (2.67mm ~ 5.08mm)
- Stud/Tab Size :
- 6 Stud
- Wire Cross Section :
- 2.62 mm2
- Color :
- Yellow, Black Stripe
- Wire Gauge (Max) :
- 14 AWG
- Series :
- Plasti-Grip
- Wire/Cable Diameter :
- 5.08 mm
- Thickness :
- 0.048 1.22mm
- Plating Thickness :
- 2.54μm
- Factory Lead Time :
- 4 Weeks
- Feature :
- Heavy Duty, Serrated Termination
- Stud Diameter :
- 3.68 mm
- Terminal Gender :
- FEMALE
- Lead Free :
- Lead Free
- Tongue Thickness :
- 1.22mm
- Diameter - Inside :
- 5.38 mm
- Terminal and Terminal Block Type :
- RING TERMINAL
- ECCN Code :
- EAR99
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Width - Outer Edges :
- 0.281 7.14mm
- Contact Plating :
- Tin
- Insulation :
- Insulated
- Length :
- 24.13mm
- Pbfree Code :
- yes
- Packaging :
- Bulk
- Mounting Type :
- Free Hanging (In-Line)
- Termination :
- Crimp
- Heavy Duty :
- yes
- Stud Size :
- M3.5
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Voltage - Rated AC :
- 600V
- Sealable :
- No
- Datasheets
- 34821
34821 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
