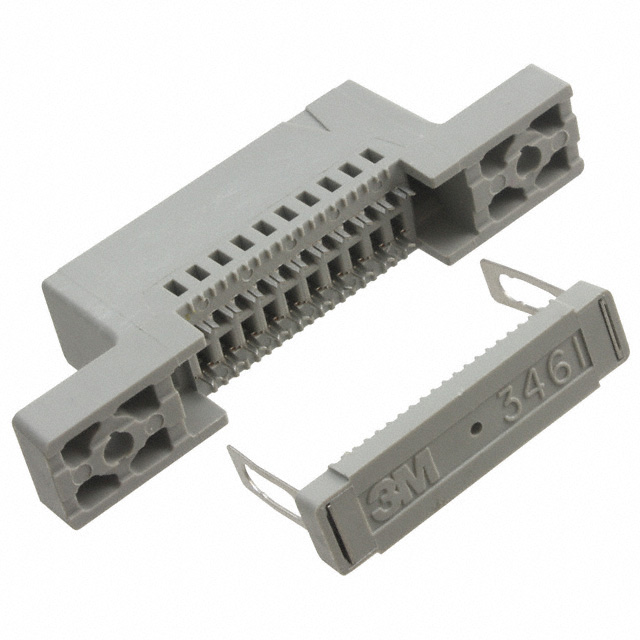

3461-0000
Or copy the link below:
- Mfr.Part #
- 3461-0000
- Manufacturer
- 3M
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 20POS 0.100
- Stock
- 20,881
- In Stock ：
- 20,881
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- 3M
- Product Category :
- Edgeboard Connectors
- Number of Positions :
- 20
- Material - Insulation :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Plating :
- Gold
- Operating Temperature :
- -55°C~105°C
- Series :
- 3000
- Max Current Rating :
- 1A
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Number of Contacts :
- 20
- Housing Material :
- Polybutylene
- Factory Lead Time :
- 5 Weeks
- Card Type :
- Non Specified - Dual Edge
- Weight :
- 1.496855kg
- Mount :
- Flanges, Panel
- Contact Material :
- COPPER ALLOY
- Flammability Rating :
- UL94 V-0
- Published :
- 2007
- REACH SVHC :
- Unknown
- Min Operating Temperature :
- -55°C
- Read Out :
- Dual
- Flange Feature :
- Flush Mount, Top Opening, Unthreaded, 0.125 (3.18mm) Dia
- Pitch :
- 0.100 2.54mm
- Card Thickness :
- 0.054 ~ 0.070 1.37mm ~ 1.78mm
- Number of Rows :
- 2
- Mounting Type :
- Panel Mount
- Orientation :
- RIGHT ANGLE
- Lead Free :
- Lead Free
- Housing Color :
- Grey
- Lead Pitch :
- 2.54mm
- Color :
- Gray
- Max Operating Temperature :
- 105°C
- Termination :
- IDC
- RoHS Status :
- RoHS Compliant
- Gender :
- FEMALE
- Contact Finish :
- Gold
- Number of Positions/Bay/Row :
- 10
- Datasheets
- 3461-0000
Female Gray 0.100 2.54mm Copper Alloy 2 Rows Bulk IDC Gold 20 Positions Polybutylene Terephthalate (PBT), Glass Filled
3461-0000 Overview
As per Bulk's specifications, the material was packaged.Mounting type Panel Mount is recommended.The 3000 indicates the device's series.The maximum operating temperature of 105°C°C allows for stable operation.A minimum working temperature of -55°C degrees Celsius is required to ensure its reliability.
3461-0000 Features
3000 series
3461-0000 Applications
There are a lot of 3M
3461-0000 Edgeboard Connectors applications.
- Audio/Video devices
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
