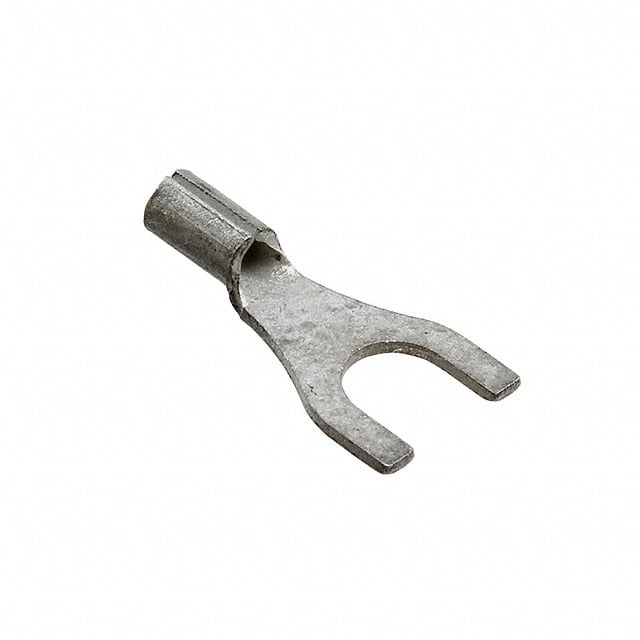

34247
Or copy the link below:
- Mfr.Part #
- 34247
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 22-26AWG #4
- Stock
- 645
- In Stock ：
- 645
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Pbfree Code :
- yes
- Material Thickness :
- 457.2μm
- Width - Outer Edges :
- 0.203 5.16mm
- Wire Gauge (Min) :
- 26 AWG
- Feature :
- Serrated Termination
- Contact Finish :
- Tin
- Factory Lead Time :
- 7 Weeks
- ECCN Code :
- EAR99
- Stud Size :
- M3
- Diameter - Inside :
- 890 μm
- Contact Material :
- Copper
- HTS Code :
- 8536.90.40.00
- Length - Overall :
- 0.431 10.95mm
- Published :
- 1997
- Heavy Duty :
- No
- Stud Diameter :
- 3.0226 mm
- Series :
- Budget
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 10.95mm
- ELV :
- Compliant
- Insulation :
- Non-Insulated
- Plating Thickness :
- 2.54μm
- Tongue Thickness :
- 460μm
- Wire Gauge :
- 22-26 AWG
- Stud/Tab Size :
- 4 Stud
- Terminal Type :
- Standard
- Tongue Inside Opening :
- 0.119 (3.02mm)
- Wire Cross Section :
- 0.41 mm2
- Length - Termination :
- 0.135 3.43mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Termination :
- Crimp
- Wire Gauge (Max) :
- 22 AWG
- Lead Free :
- Not Applicable
- RoHS Status :
- RoHS Compliant
- Mount :
- Free Hanging
- Packaging :
- Bulk
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Mounting Type :
- Free Hanging (In-Line)
- Length - Ring Center to Termination :
- 0.211 5.36mm
- Datasheets
- 34247
34247 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
