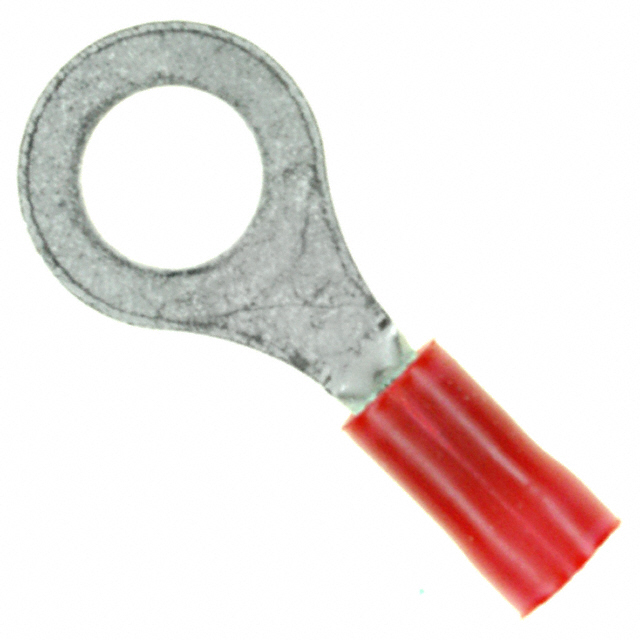

34150
Or copy the link below:
- Mfr.Part #
- 34150
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 16-22AWG #1/4
- Stock
- 5,748
- In Stock ：
- 5,748
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Stud/Tab Size :
- 1/4 Stud
- Color :
- Red
- Wire/Cable Diameter :
- 3.56 mm
- Wire Gauge (Min) :
- 22 AWG
- Insulation :
- Insulated
- Depth :
- 11.91mm
- Packaging :
- Bulk
- Plating Thickness :
- 2.54μm
- Mounting Type :
- Free Hanging (In-Line)
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- Plasti-Grip
- Max Operating Temperature :
- 90°C
- Length - Overall :
- 1.090 27.69mm
- HTS Code :
- 8536.90.40.00
- REACH SVHC :
- No SVHC
- Stud Size :
- M6
- Published :
- 2006
- Contact Plating :
- Tin
- Insulated Wire Support :
- yes
- Feature :
- Serrated Termination
- Width :
- 11.9mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Min Operating Temperature :
- -25°C
- Diameter - Inside :
- 3.68 mm
- Voltage - Rated AC :
- 600V
- Material Thickness :
- 787.4μm
- Wire Gauge (Max) :
- 16 AWG
- Insulation Diameter :
- 0.105 ~ 0.140 (2.67mm ~ 3.56mm)
- Terminal and Terminal Block Type :
- RING TERMINAL
- Termination :
- Crimp
- Wire Gauge :
- 16-22 AWG
- Orientation :
- Straight
- RoHS Status :
- RoHS Compliant
- Wire/Cable Gauge :
- -16 AWG
- Stud Diameter :
- 6.731 mm
- Lead Free :
- Lead Free
- Heavy Duty :
- No
- Width - Outer Edges :
- 0.469 11.91mm
- Length :
- 27.686mm
- Factory Lead Time :
- 4 Weeks
- Number of Holes :
- 1
- Contact Material :
- Copper
- ELV :
- Compliant
- ECCN Code :
- EAR99
- Terminal Type :
- Circular
- Gender :
- FEMALE
- Thickness :
- 0.031 0.79mm
- Mount :
- CABLE
- Tongue Thickness :
- 790μm
- Datasheets
- 34150
34150 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
