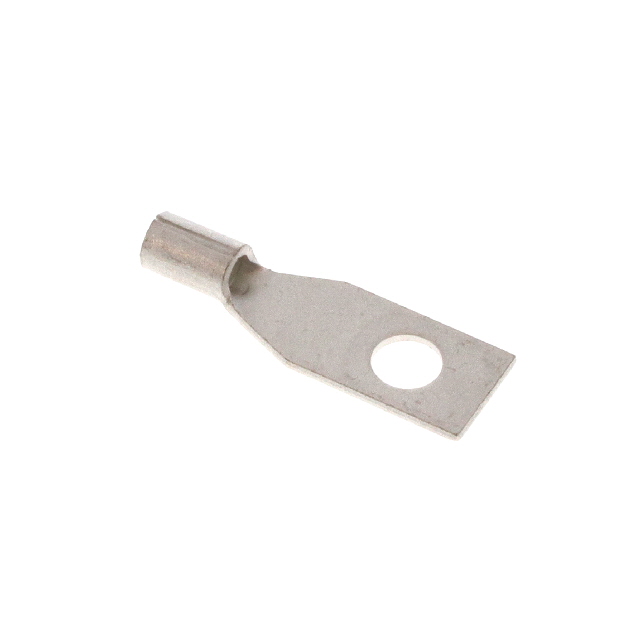

328356
Or copy the link below:
- Mfr.Part #
- 328356
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM RECT TONG 14-16 AWG #8
- Stock
- 118
- In Stock ：
- 118
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connectors
- Mounting Type :
- Free Hanging (In-Line)
- Insulation :
- Non-Insulated
- Stud Size :
- M4
- Feature :
- Brazed Seam, Serrated Termination
- Contact Finish :
- Tin
- Material Thickness :
- 840μm
- Diameter - Ring ID :
- 0.171 (4.34mm)
- Heavy Duty :
- No
- Factory Lead Time :
- 12 Weeks
- Width - Outer Edges :
- 0.302 7.67mm
- ELV :
- Compliant
- Stud Diameter :
- 4.34 mm
- Termination :
- Crimp
- Wire Gauge (Min) :
- 16 AWG
- Plating Thickness :
- 2.54μm
- Wire Gauge (Max) :
- 14 AWG
- Length :
- 24.94026mm
- Terminal Style :
- Single Stud Hole
- HTS Code :
- 8536.90.40.00
- ECCN Code :
- EAR99
- Stud/Tab Size :
- 8 Stud
- Wire Gauge :
- 14-16 AWG
- RoHS Status :
- RoHS Compliant
- Diameter - Barrel OD :
- 0.165 (4.19mm)
- Contact Material :
- Copper
- Series :
- Solistrand
- Length - Overall :
- 0.982 24.94mm
- Terminal Type :
- Rectangular Tongue
- Diameter - Barrel ID :
- 0.085 (2.16mm)
- Tab Thickness :
- 0.031 0.79mm
- Published :
- 1997
- Lead Free :
- Not Applicable
- Wire Cross Section :
- 2 mm2
- Terminal and Terminal Block Type :
- RING TERMINAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Wire/Cable Gauge :
- 14 AWG
- Datasheets
- 328356
328356 datasheet pdf and Terminals - Rectangular Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
