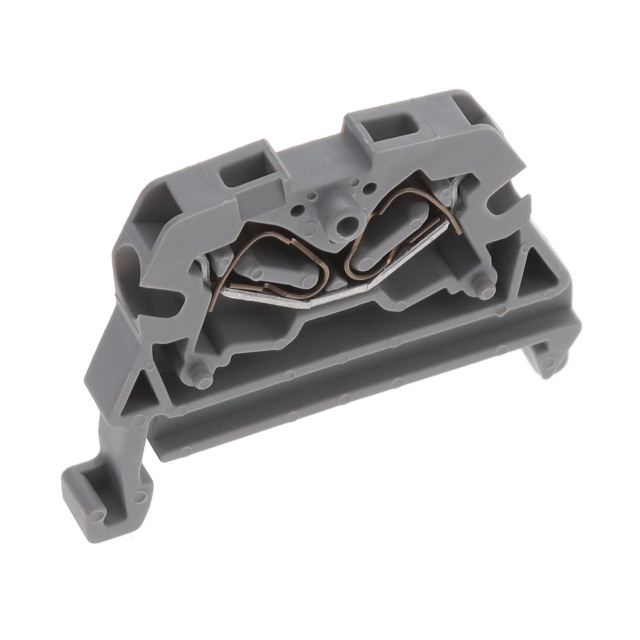

3249088

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

0.08-4mm2

Mount :

Through Hole

Height :

39.5mm

Published :

2011

Voltage - Rated :

800V

Max Operating Temperature :

130°C

Factory Lead Time :

4 Weeks

Current Rating :

24A

Max Current Rating :

24A

Stripping Length :

8mm

Voltage - IEC :

800V

Voltage :

300V

Number of Levels :

1

Color :

Gray

Wire Gauge (Max) :

28 AWG

Series :

CLIPLINE ST

Termination Style :

Push In, Spring

Wire Gauge or Range - AWG :

12-28 AWG

Width :

5.2mm

Material - Insulation :

Polyamide (PA), Nylon

Wire Gauge (Min) :

12 AWG

HTS Code :

8536.69.40.40

Material Flammability Rating :

UL94 V-0

Current :

20A

Min Operating Temperature :

-60°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

2

RoHS Status :

RoHS Compliant

Type :

Feed Through

ECCN Code :

EAR99

Length :

42.7mm
