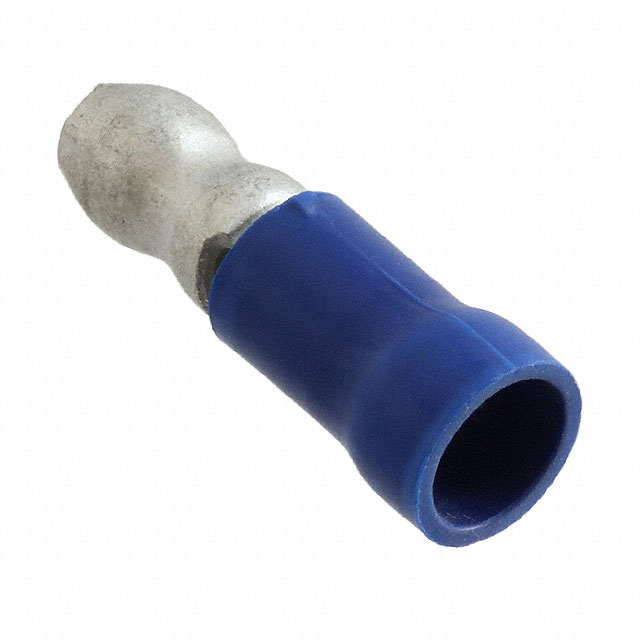

324228
Or copy the link below:
- Mfr.Part #
- 324228
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM PIN 14-16AWG CRIMP
- Stock
- 7,755
- In Stock ：
- 7,755
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Barrel, Bullet Connectors
- Packaging :
- Bulk
- Factory Lead Time :
- 4 Weeks
- RoHS Status :
- RoHS Compliant
- Gender :
- Male
- Contact Material :
- Copper
- Contact Finish :
- Tin
- Length :
- 19.63mm
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Insulation Diameter :
- 0.118 ~ 0.193 (3.00mm ~ 4.90mm)
- Published :
- 2006
- Color :
- Blue
- ELV :
- Compliant
- Termination :
- Crimp
- Plating :
- Copper
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Min) :
- 14 AWG
- Radiation Hardening :
- No
- Tab Thickness :
- 838.2μm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Width - Tab :
- 19.6342mm
- Wire Gauge :
- 14-16 AWG
- Diameter - Barrel :
- 0.180 (4.57mm)
- Lead Free :
- Not Applicable
- Insulation :
- Non-Mating End Insulated
- Wire Gauge (Max) :
- 16 AWG
- Terminal Type :
- Male, Pin (Plug)
- Body Plating :
- Tin
- Length - Overall :
- 0.773 19.63mm
- Series :
- Plasti-Grip, Shur-Plug
- Length - Barrel :
- 0.311 7.90mm
- Material :
- Copper
- Body Material :
- Copper
- Datasheets
- 324228
324228 datasheet pdf and Terminals - Barrel, Bullet Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
