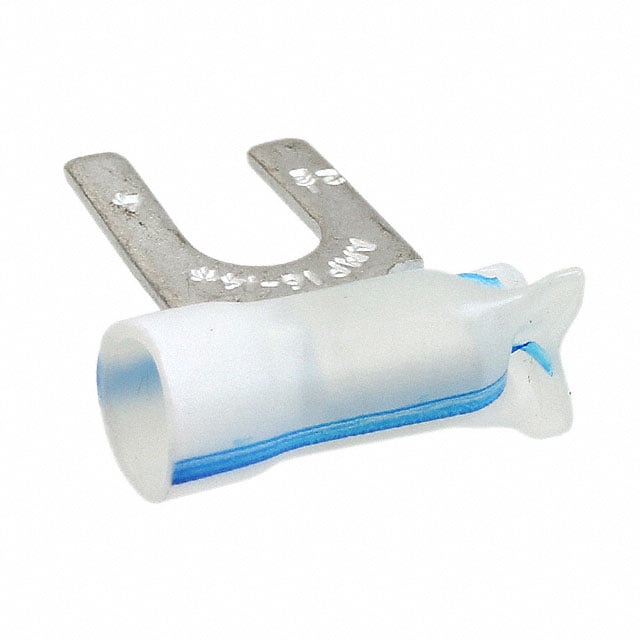

322834
Or copy the link below:
- Mfr.Part #
- 322834
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 14-16AWG #10
- Stock
- 6,580
- In Stock ：
- 6,580
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Insulated Wire Support :
- yes
- ECCN Code :
- EAR99
- Wire Gauge (Max) :
- 16 AWG
- Length :
- 17.65mm
- Pbfree Code :
- yes
- Color :
- Natural, Blue Stripe
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Wire Gauge (Min) :
- 14 AWG
- Stud/Tab Size :
- 10 Stud
- Factory Lead Time :
- 15 Weeks
- Length - Ring Center to Termination :
- 0.272 6.91mm
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Insulation Diameter :
- 0.115 ~ 0.170 (2.92mm ~ 4.32mm)
- Voltage - Rated AC :
- 600V
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Wire Gauge :
- 14-16 AWG
- Packaging :
- Bulk
- Insulation :
- Insulated
- Contact Material :
- Copper
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Wire/Cable Diameter :
- 4.318 mm
- Series :
- Plasti-Grip
- Contact Finish :
- Tin
- Mounting Type :
- Free Hanging (In-Line)
- Tongue Thickness :
- 780μm
- Material Thickness :
- 790μm
- Stud Diameter :
- 5 mm
- Lead Free :
- Not Applicable
- Published :
- 1997
- Heavy Duty :
- No
- Mount :
- Free Hanging
- Diameter - Inside :
- 4.45 mm
- Width - Outer Edges :
- 0.385 9.78mm
- Termination :
- Crimp, Flag
- Tongue Inside Opening :
- 0.197 (5.00mm)
- Terminal Type :
- Standard
- HTS Code :
- 8536.90.40.00
- Datasheets
- 322834
