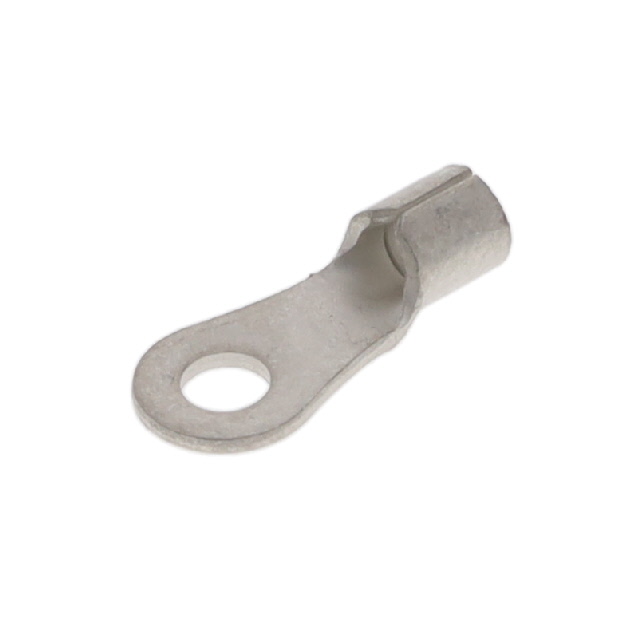

322419
Or copy the link below:
- Mfr.Part #
- 322419
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 14-16AWG #4 CRIMP
- Stock
- 340
- In Stock ：
- 340
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Stud Diameter :
- 3.0226 mm
- HTS Code :
- 8536.90.40.00
- Wire Gauge (Max) :
- 16 AWG
- Series :
- Budget
- Termination :
- Crimp
- Diameter - Inside :
- 2.261 mm
- Material Thickness :
- 790μm
- Terminal and Terminal Block Type :
- RING TERMINAL
- Feature :
- Serrated Termination
- Number of Holes :
- 1
- Stud/Tab Size :
- 4 Stud
- Length - Overall :
- 0.590 14.99mm
- Width - Outer Edges :
- 0.250 6.35mm
- ELV :
- Compliant
- Stud Size :
- M4
- Packaging :
- Bulk
- Tongue Thickness :
- 790μm
- Wire Gauge (Min) :
- 14 AWG
- Published :
- 1999
- Plating :
- Tin
- Factory Lead Time :
- 8 Weeks
- Plating Thickness :
- 2.54μm
- Terminal Type :
- Circular
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Thickness :
- 0.031 0.79mm
- RoHS Status :
- RoHS Compliant
- ECCN Code :
- EAR99
- Mounting Type :
- Free Hanging (In-Line)
- Contact Material :
- Copper
- Insulated Wire Support :
- No
- Length :
- 14.99mm
- Wire Gauge :
- 14-16 AWG
- Depth :
- 6.35mm
- Insulation :
- Non-Insulated
- Datasheets
- 322419
322419 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
