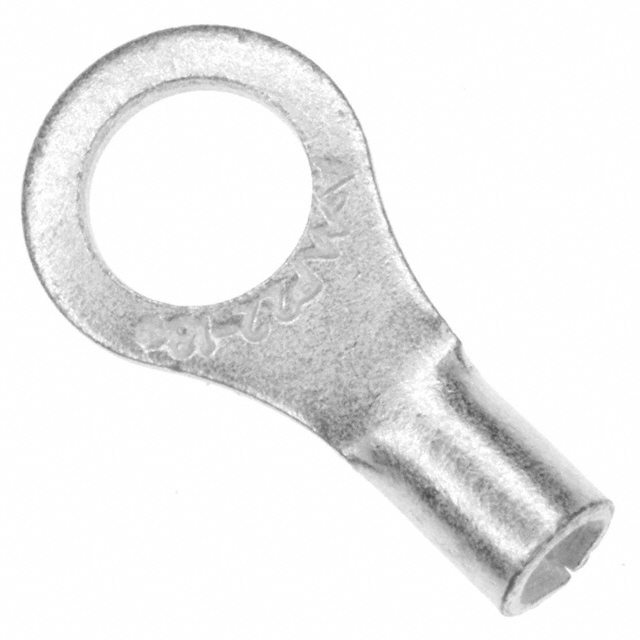

30693
Or copy the link below:
- Mfr.Part #
- 30693
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 16-22AWG #10
- Stock
- 1,040
- In Stock ：
- 1,040
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Termination :
- Crimp
- Mount :
- Free Hanging
- Material Thickness :
- 790μm
- Heavy Duty :
- No
- Stud/Tab Size :
- 10 Stud
- Thickness :
- 0.031 0.79mm
- Terminal and Terminal Block Type :
- RING TERMINAL
- Factory Lead Time :
- 5 Weeks
- ECCN Code :
- EAR99
- Width - Outer Edges :
- 0.312 7.92mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Tongue Thickness :
- 790μm
- Pbfree Code :
- yes
- Width :
- 7.92mm
- Orientation :
- Straight
- Number of Holes :
- 1
- Published :
- 2003
- Terminal Type :
- Circular
- HTS Code :
- 8536.90.40.00
- Length - Overall :
- 0.621 15.77mm
- Series :
- Budget
- Stud Diameter :
- 5 mm
- Diameter - Inside :
- 1.65 mm
- RoHS Status :
- RoHS Compliant
- Insulation :
- Non-Insulated
- Gender :
- FEMALE
- Contact Material :
- Copper
- Wire Gauge (Max) :
- 22 AWG
- Wire Gauge (Min) :
- 16 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Feature :
- Serrated Termination
- ELV :
- Compliant
- Packaging :
- Bulk
- Length :
- 15.7734mm
- REACH SVHC :
- No SVHC
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge :
- 16-22 AWG
- Lead Free :
- Not Applicable
- Contact Finish :
- Tin
- Datasheets
- 30693
