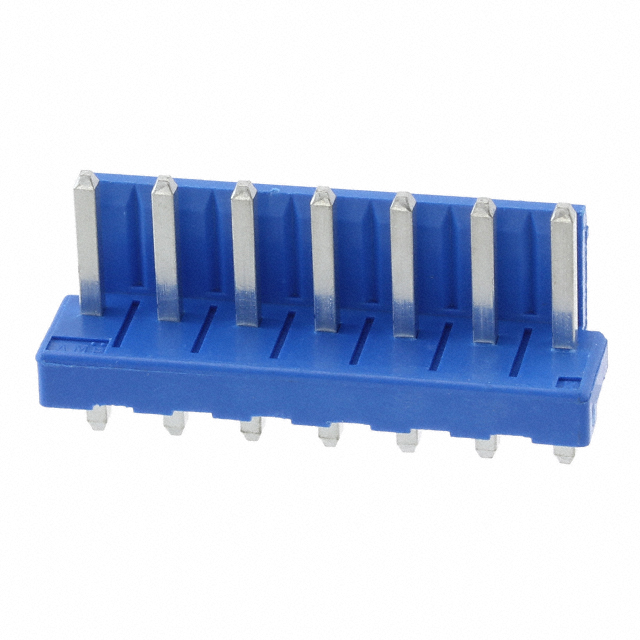

3-1123723-7
Or copy the link below:
- Mfr.Part #
- 3-1123723-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 3.96MM
- Stock
- 43,108
- In Stock ：
- 43,108
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Blue
- Plating :
- Tin
- Voltage - Rated :
- 250VAC
- Style :
- Board to Cable/Wire
- Overall Contact Length :
- 0.567 14.40mm
- Contact Shape :
- Square
- Operating Temperature :
- -25°C~105°C
- Pitch :
- 3.9624mm
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 250V
- Contact Retention :
- Without
- Packaging :
- Bulk
- Contact Finish - Mating :
- Tin
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 1 Wall
- Contact Plating :
- Tin
- Number of Positions :
- 7
- Color :
- Blue
- Orientation :
- Vertical
- PCB Thickness :
- 1.57mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Post :
- 0.146 3.70mm
- Number of Positions Loaded :
- All
- Max Operating Temperature :
- 105°C
- Contact Material :
- Brass
- ELV :
- Compliant
- Current Rating :
- 8A
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Termination :
- Solder
- Height :
- 8.128mm
- Contact Finish - Post :
- Tin
- Pitch - Mating :
- 0.156 3.96mm
- Length :
- 27.66mm
- Factory Lead Time :
- 18 Weeks
- Mating Post Length :
- 7.62mm
- Current Rating (Amps) :
- 7.5A
- Published :
- 2005
- Series :
- Economy Power
- Mount :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Housing Color :
- Blue
- Width :
- 10.7mm
- PCB Mounting Orientation :
- Vertical
- Number of Contacts :
- 7
- Circuit Application :
- Power
- Housing Material :
- PBT
- Contact Length - Mating :
- 0.303 7.70mm
- Insulation Height :
- 0.118 3.00mm
- Fastening Type :
- Friction Lock
- Sealable :
- No
- Min Operating Temperature :
- -25°C
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- RoHS Status :
- RoHS Compliant
- Contact Current Rating :
- 8A
- Number of Power Positions :
- 7
- Material :
- Nylon
- Applications :
- General Purpose, Industrial, Lighting
- Plating Thickness :
- 1μm
- Number of Rows :
- 1
- Connector Type :
- Header
- Datasheets
- 3-1123723-7
Economy Power Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 7-Position Board to Cable/Wire 0.118 3.00mm Height
3-1123723-7 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Economy Power Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -25°C degrees.This device may be used for the purpose of General Purpose, Industrial, Lighting.Through Hole represents the mounting point for the part.You're going to need 250V to power this memory.-25°C~105°C Operating Temperature is the default operating temperature for the device.
3-1123723-7 Features
Economy Power series
3-1123723-7 Applications
There are a lot of TE Connectivity AMP Connectors
3-1123723-7 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
