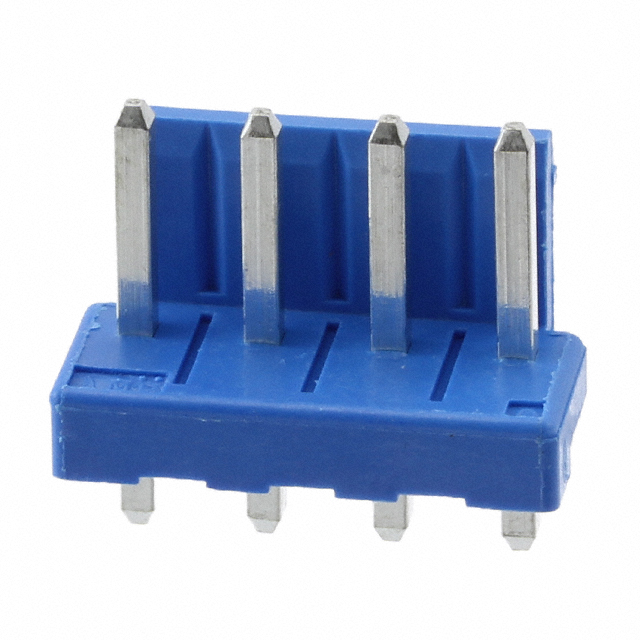

3-1123723-4
Or copy the link below:
- Mfr.Part #
- 3-1123723-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 3.96MM
- Stock
- 32,209
- In Stock ：
- 32,209
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Connector Type :
- Header
- Pitch :
- 3.9624mm
- Current Rating :
- 7.5A
- Lead Free :
- Lead Free
- PCB Mount Retention :
- Without
- Overall Contact Length :
- 0.567 14.40mm
- PCB Thickness :
- 1.6002mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Plating :
- Tin
- Insulation Height :
- 0.118 3.00mm
- Contact Style :
- Straight
- Operating Supply Voltage :
- 250V
- ELV :
- Compliant
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 7.5A
- Material :
- Nylon
- Number of Positions Loaded :
- All
- Insulation Color :
- Blue
- Width :
- 10.7mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Length :
- 15.7734mm
- Mount :
- Through Hole
- Pitch - Mating :
- 0.156 3.96mm
- RoHS Status :
- RoHS Compliant
- Shrouding :
- Shrouded - 1 Wall
- Contact Length - Mating :
- 0.303 7.70mm
- Termination :
- Solder
- Mating Retention :
- With
- Series :
- Economy Power
- Fastening Type :
- Friction Lock
- Height :
- 8.2mm
- Mounting Type :
- Through Hole
- Sealable :
- No
- Orientation :
- Vertical
- PCB Mount Alignment :
- Without
- Contact Current Rating :
- 7.5A
- Radiation Hardening :
- No
- Max Operating Temperature :
- 105°C
- Contact Length - Post :
- 0.146 3.70mm
- Applications :
- General Purpose, Industrial, Lighting
- Min Operating Temperature :
- -25°C
- Number of Rows :
- 1
- Published :
- 2005
- Contact Finish - Post :
- Tin
- Voltage - Rated :
- 250VAC
- Housing Material :
- PBT
- Length - Tail :
- 3.7mm
- Plating Thickness :
- 800 nm
- Color :
- Blue
- PCB Mounting Orientation :
- Vertical
- Contact Finish - Mating :
- Tin
- Contact Type :
- Male Pin
- Contact Material :
- Brass
- Contact Finish Thickness - Mating :
- 800 nm
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Number of Positions :
- 4
- Operating Temperature :
- -25°C~105°C
- Number of Contacts :
- 4
- Factory Lead Time :
- 20 Weeks
- Style :
- Board to Cable/Wire
- Housing Color :
- Blue
- Mating Post Length :
- 7.7mm
- Contact Plating :
- Tin
- Flammability Rating :
- UL94 V-0
- Datasheets
- 3-1123723-4
Economy Power Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 4-Position Board to Cable/Wire 0.118 3.00mm Height
3-1123723-4 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Economy Power Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -25°C for this device.A possible application of the device would be General Purpose, Industrial, Lighting.In this case, Through Hole mounts the part.The memory's operating supply voltage is 250V.The device is operating at -25°C~105°C Operating Temperature.
3-1123723-4 Features
Economy Power series
3-1123723-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-1123723-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
