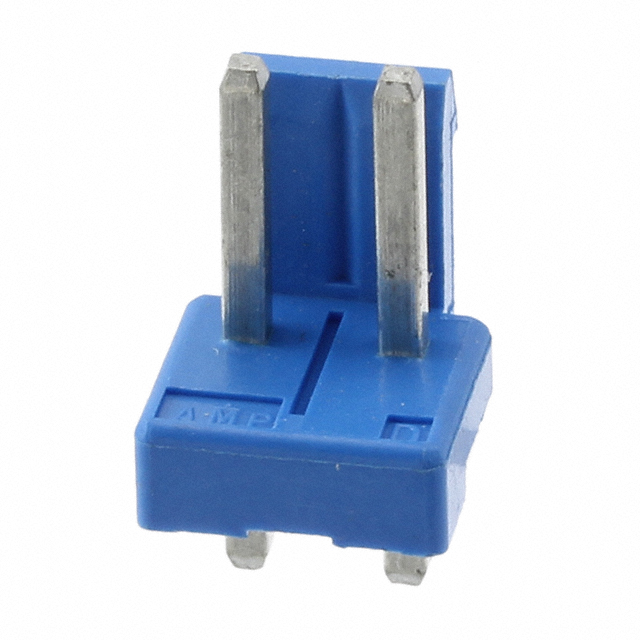

3-1123723-2
Or copy the link below:
- Mfr.Part #
- 3-1123723-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 3.96MM
- Stock
- 345
- In Stock ：
- 345
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Height :
- 8.128mm
- Current Rating (Amps) :
- 7.5A
- Orientation :
- Vertical
- Contact Length - Post :
- 0.146 3.70mm
- Overall Contact Length :
- 0.567 14.40mm
- ELV :
- Compliant
- Number of Rows :
- 1
- Mount :
- Through Hole
- Housing Material :
- PBT
- Housing Color :
- Blue
- PCB Mounting Orientation :
- Vertical
- Current Rating :
- 8A
- Number of Positions :
- 2
- Circuit Application :
- Power
- Contact Finish - Mating :
- Tin
- Sealable :
- No
- Width :
- 10.7mm
- Fastening Type :
- Friction Lock
- Plating :
- Tin
- Insulation Color :
- Blue
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Connector Type :
- Header
- Contact Material :
- Brass
- Applications :
- General Purpose, Industrial, Lighting
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Insulation Height :
- 0.118 3.00mm
- Number of Power Positions :
- 2
- Contact Length - Mating :
- 0.303 7.70mm
- Plating Thickness :
- 1μm
- PCB Thickness :
- 1.57mm
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 250VAC
- Pitch :
- 3.9624mm
- Max Operating Temperature :
- 105°C
- Contact Type :
- Male Pin
- Mating Post Length :
- 7.62mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Mounting Type :
- Through Hole
- Series :
- Economy Power
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Style :
- Board to Cable/Wire
- Length :
- 7.86mm
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -25°C~105°C
- Color :
- Blue
- Flammability Rating :
- UL94 V-0
- Contact Retention :
- Without
- Radiation Hardening :
- No
- Shrouding :
- Shrouded - 1 Wall
- Contact Plating :
- Tin
- Number of Contacts :
- 2
- Contact Shape :
- Square
- Contact Finish - Post :
- Tin
- Operating Supply Voltage :
- 250V
- Published :
- 2005
- Min Operating Temperature :
- -25°C
- Contact Current Rating :
- 8A
- Pitch - Mating :
- 0.156 3.96mm
- Material :
- Nylon
- Factory Lead Time :
- 14 Weeks
- Datasheets
- 3-1123723-2
Economy Power Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 2-Position Board to Cable/Wire 0.118 3.00mm Height
3-1123723-2 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Economy Power Series of products.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -25°C at all times.It is possible for the device to be used for the application General Purpose, Industrial, Lighting.Through Hole mounts the part.A voltage of 250V is required to operate this memory.There is no operating temperature for the device.
3-1123723-2 Features
Economy Power series
3-1123723-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-1123723-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
