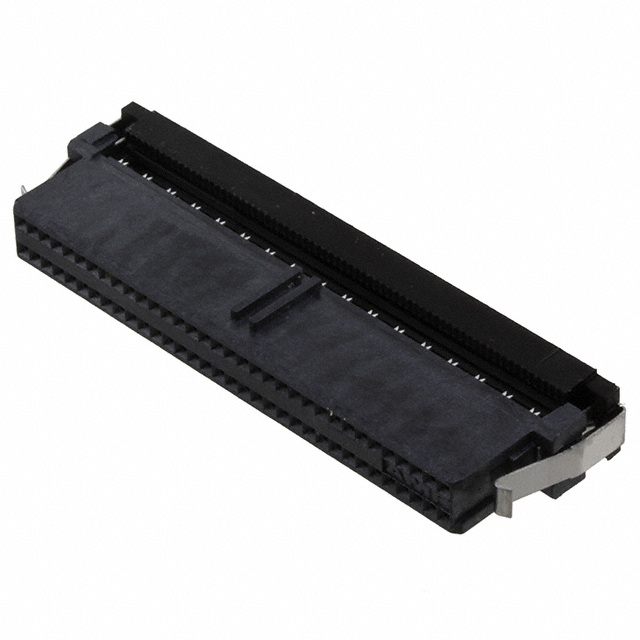

3-111196-4
Or copy the link below:
- Mfr.Part #
- 3-111196-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 68P IDC 30-32AWG GOLD
- Stock
- 220
- In Stock ：
- 220
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- MIL Conformance :
- No
- Mount :
- Cable, Free Hanging
- RoHS Status :
- RoHS Compliant
- Height :
- 12.319mm
- Series :
- AMPMODU System 50
- Width :
- 6.45mm
- Mating Connector Lock :
- With
- Operating Supply Voltage :
- 30V
- DIN Conformance :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Pitch :
- 0.050 1.27mm
- Published :
- 2005
- REACH SVHC :
- No SVHC
- Depth :
- 6.45mm
- Filter Feature :
- No
- Mounting Type :
- Free Hanging (In-Line)
- Contact Current Rating :
- 500mA
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Reference Standard :
- UL
- Factory Lead Time :
- 9 Weeks
- Number of Positions :
- 68
- IEC Conformance :
- No
- JESD-609 Code :
- e3
- Length :
- 49.784mm
- Shape :
- RECTANGULAR
- Current Rating :
- 500mA
- Plating Thickness :
- 5.08μm
- Option :
- GENERAL PURPOSE
- Housing Material :
- Thermoplastic
- Contact Gender :
- FEMALE
- Number of Rows :
- 2
- Mixed Contacts :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Circuit Application :
- Signal
- Reliability :
- COMMERCIAL
- Rated Current (Signal) :
- 0.5A
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- UL Flammability Code :
- 94V-0
- Contact Plating :
- Gold, Tin
- Additional Feature :
- AMP-Latch
- Total Number of Contacts :
- 68
- Contact Finish :
- Gold
- Voltage - Rated :
- 30V
- Row Spacing :
- 0.100 (2.54mm)
- Max Voltage Rating (AC) :
- 30V
- Sealable :
- No
- Insulation Resistance :
- 5GOhm
- Contact Resistance :
- 30mOhm
- Max Operating Temperature :
- 105°C
- Contact Type :
- Female Socket
- Flammability Rating :
- UL94 V-0
- Wire Gauge (Min) :
- 30 AWG
- Wire Gauge :
- 30-32 AWG
- Cable Termination :
- IDC
- Min Operating Temperature :
- -65°C
- Orientation :
- RIGHT ANGLE
- Wire Type :
- Ribbon Cable
- Feature :
- Feed Through
- Contact Material :
- Copper
- Wire/Cable Type :
- Ribbon
- Fastening Type :
- Latch Lock
- Color :
- Black
- Termination :
- IDT
- Wire Gauge (Max) :
- 32 AWG
- Packaging :
- Bulk
- Connector Type :
- Receptacle
- Datasheets
- 3-111196-4
