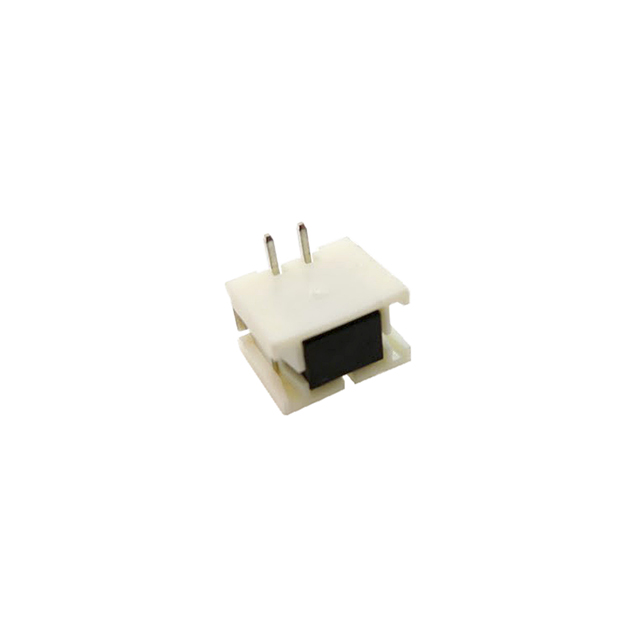

2SH-C-02-TS-SMT

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Current Rating (Amps) :

2A

Shrouding :

Shrouded - 4 Wall

Contact Shape :

Square

Number of Positions :

2

Style :

Board to Cable/Wire

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

1

Reach Compliance Code :

Compliant

PCB Contact Pattern :

RECTANGULAR

Material Flammability Rating :

UL94 V-0

Pitch - Mating :

0.079 2.00mm

ECCN Code :

EAR99

Insulation Color :

White

Feature :

Solder Retention

Contact Material :

Brass

Reference Standard :

UL, CSA

Series :

2SH

Additional Feature :

RoHS Compliant

Contact Type :

Male Pin

Contact Finish - Mating :

Tin

Number Of PCB Rows :

1

Reliability :

COMMERCIAL

Packaging :

Bulk

Number of Positions Loaded :

All

Connector Type :

Header

Mounting Type :

Surface Mount

Insulation Height :

0.260 6.60mm

Insulation Material :

Polyamide (PA46), Nylon 4/6

Mating Contact Pitch :

0.079 inch

Total Number of Contacts :

2

Number of Conductors :

ONE

Operating Temperature :

-25°C~85°C

Voltage - Rated :

100VAC

Polarization Key :

POLARIZED HOUSING

Mounting Option 1 :

LOCKING

HTS Code :

8536.69.40.40

Termination :

Solder
