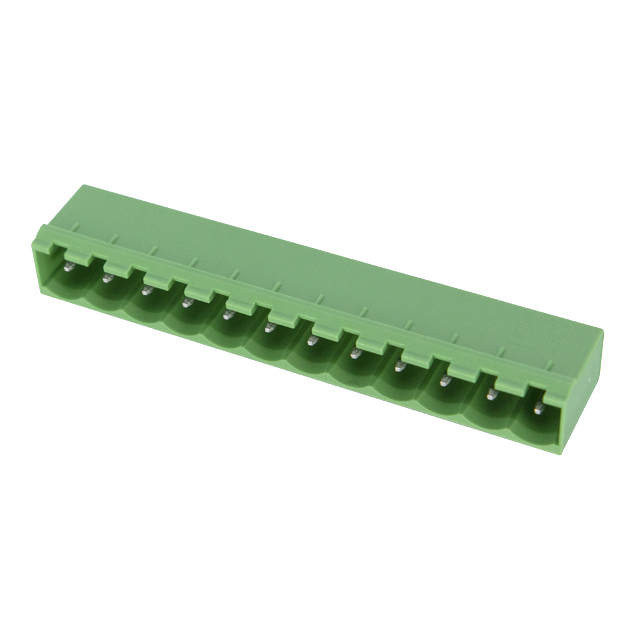

2EHDRC-12P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Current - IEC :

18A

Plug Wire Entry :

-

Contact Mating Finish :

Tin

Voltage - IEC :

630 V

Voltage - UL :

300 V

Package :

Bulk

Screw Size :

-

Wire Gauge or Range - AWG :

-

Material Flammability Rating :

UL94 V-0

Type :

Header, Male Pins, Shrouded (4 Side)

Number of Positions :

12

Contact Material :

COPPER ALLOY

Series :

EHDRC

Positions Per Level :

12

Torque - Screw :

-

Features :

-

Wire Gauge or Range - mm² :

-

Ingress Protection :

-

Mounting Type :

Through Hole

Contact Tail Length :

0.102 (2.60mm)

Pitch :

0.200 (5.08mm)

Insulation Height :

0.328 (8.32mm)

Header Orientation :

90°, Right Angle

Color :

Black

Wire Strip Length :

-

Termination Style :

Solder

Operating Temperature :

-40°C ~ 120°C

Current - UL :

15 A

Number of Levels :

1

Product Status :

Active

Housing Material :

Thermoplastic
