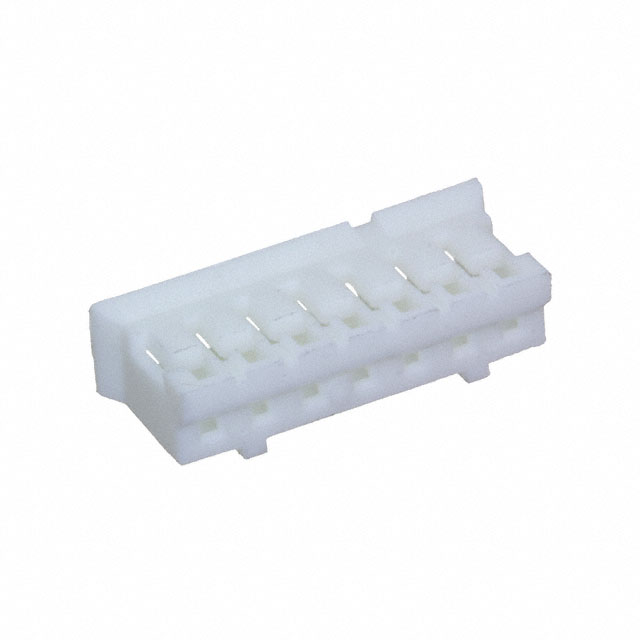

2CH-C-07

Manufacturer :

Adam Tech

Product Category :

Rectangular Connector Housings

Mounting Type :

Free Hanging (In-Line)

Fastening Type :

Friction Lock

Reference Standard :

UL, CSA

Contact Termination :

Crimp

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

9 Weeks

Contact Finish - Mating :

SN ON CU

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

7

Contact Type :

Female Socket

JESD-609 Code :

e3

Dielectric Withstanding Voltage :

800VAC V

Mounting Option 1 :

LOCKING

Number of Rows :

1

Reliability :

COMMERCIAL

Color :

White

Pitch :

0.079 2.00mm

Note :

Contacts Not Included

Total Number of Contacts :

7

Connector Type :

Receptacle

Operating Temperature (Min) :

-25°C

Packaging :

Bulk

Insulation Material :

Nylon

Operating Temperature (Max) :

85°C

Polarization Key :

POLARIZED HOUSING

Body Length or Diameter :

0.553 inch

Rated Current (Signal) :

1A

Series :

2CH

Contact Material :

Brass
