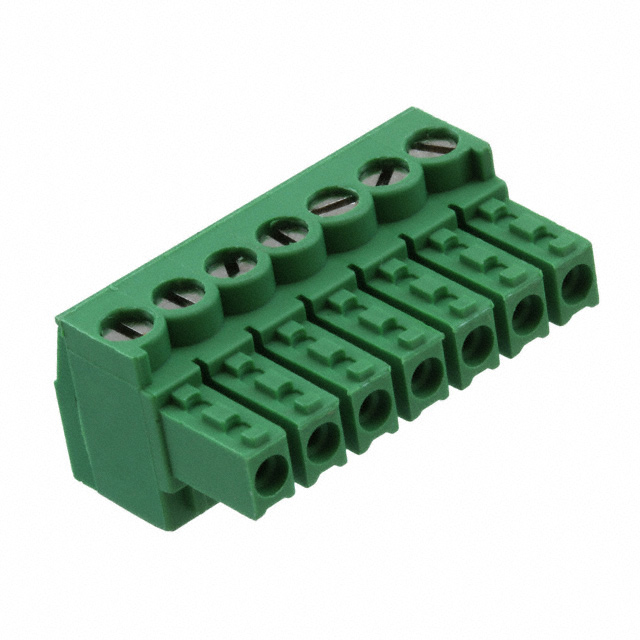

284506-7

Share

Or copy the link below:

Mfr.Part #
284506-7
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
TERM BLOCK PLUG 7POS STR 3.5MM
Stock
1,120
In Stock :
1,120

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Plugs and Sockets
Current Rating :
11A
Max Operating Temperature :
105°C
Pitch :
0.138 3.50mm
Flammability Rating :
UL94 V-0
Packaging :
Bulk
ELV :
Compliant
Orientation :
RIGHT ANGLE
Length :
24.5mm
Material Flammability Rating :
UL94 V-0
Feature :
Side Stacking
Plug Wire Entry :
180°
Depth :
15.5mm
Contact Mating Finish :
Tin
Wire Gauge or Range - AWG :
14-30 AWG
Termination :
Solder
Max Current Rating :
11A
Voltage - Rated AC :
300V
Wire Gauge (Max) :
30 AWG
Max Voltage Rating (AC) :
300V
Number of Positions :
7
Termination Style :
Screw - Rising Cage Clamp
Current - UL :
11A
Published :
2007
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Radiation Hardening :
No
Current :
11A
Housing Color :
Green
Operating Temperature :
-40°C~110°C
Torque - Screw :
0.31 Nm (2.7 Lb-In)
Color :
Green
Insulation Height :
0.437 11.10mm
Max Supply Voltage (AC) :
300V
Number of Rows :
1
Number of Contacts :
7
Contact Plating :
Tin
Voltage - Rated :
300V
Contact Material :
Phosphor Bronze
RoHS Status :
RoHS Compliant
Screw Size :
M2
Series :
Buchanan
Min Operating Temperature :
-40°C
Type :
Plug, Female Sockets
Number of Levels :
1
Voltage - UL :
300V
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Number of Positions Per Level :
7
Lead Free :
Not Applicable
Mount :
Through Hole
Mounting Type :
Free Hanging (In-Line)
Connector Type :
PLUG
Wire Gauge (Min) :
30 AWG
Wire Gauge or Range - mm² :
0.05-3mm2
Factory Lead Time :
15 Weeks
Thread Size :
M2
Wire Strip Length :
5-6mm
Voltage :
300V
Housing Material :
Polyamide (PA66), Nylon 6/6
Number of Circuits :
7
Positions Per Level :
7
Datasheets
284506-7
Introducing Headers, Plugs and Sockets TE Connectivity AMP Connectors 284506-7 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~110°C, Type:Plug, Female Sockets, Mounting Type:Free Hanging (In-Line), Voltage:300V, 284506-7 pinout, 284506-7 datasheet PDF, 284506-7 amp .Beyond Headers, Plugs and Sockets TE Connectivity AMP Connectors 284506-7 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 284506-7


Bulk 0.138 3.50mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze

284506-7 Overview


Currently, it is packaged in Plug.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -40°C degrees.A number of features make the Side Stacking feature more powerful.Through Hole represents the mounting point for the part.Contains 7 circuits.-40°C~110°C Operating Temperature is the default operating temperature for the device.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.

284506-7 Features


Buchanan series


284506-7 Applications


There are a lot of TE Connectivity AMP Connectors
284506-7 Terminal Blocks applications.
