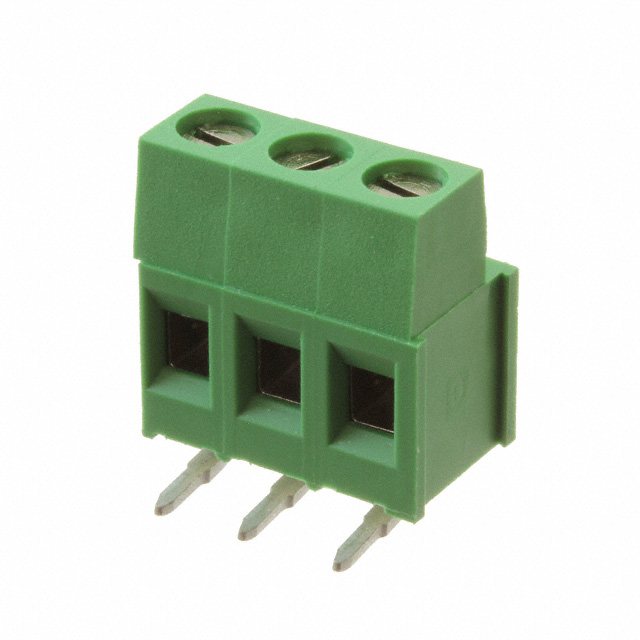

284410-3
Or copy the link below:
- Mfr.Part #
- 284410-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3POS BOTTOM ENT 5MM PCB
- Stock
- 15,009
- In Stock ：
- 15,009
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Termination :
- Screw
- Color :
- Green
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Brass
- Number of Decks :
- 1
- Number of Contacts :
- 3
- Number of Levels :
- 1
- Contact Material - Plating :
- Brass - Tin Plated
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Current Rating :
- 17.5A
- Series :
- Buchanan
- Screw Thread :
- M3
- Max Current Rating :
- 17.5A
- Flammability Rating :
- UL94 V-0
- Contact Plating :
- Tin
- Radiation Hardening :
- No
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Voltage - Rated :
- 300V
- Orientation :
- RIGHT ANGLE
- Mating Orientation :
- Vertical with Board, Bottom Entry
- Wire Gauge :
- 12-30 AWG
- Screw Material - Plating :
- Brass - Nickel Plated
- Wire Termination :
- Screw - Rising Cage Clamp
- ECCN Code :
- EAR99
- Mounting Type :
- Through Hole
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Feature :
- Interlocking (Side)
- Length - Tail :
- 2.4892mm
- Packaging :
- Bulk
- Number of Rows :
- 1
- Safety Approval :
- UL
- ELV :
- Compliant
- Shrouding :
- yes
- RoHS Status :
- RoHS Compliant
- Mount :
- Through Hole
- Connector Type :
- Receptacle
- Factory Lead Time :
- 12 Weeks
- Published :
- 2007
- Clamp Material - Plating :
- Brass - Nickel Plated
- Wire Gauge (Max) :
- 30 AWG
- Wire Cross Section :
- 2.5 mm2
- Number of Ways :
- 13
- Wire Gauge (Min) :
- 12 AWG
- Pitch :
- 0.197 5.00mm
- Datasheets
- 284410-3
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board, Bottom Entry Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
284410-3 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
284410-3 Features
Buchanan series
284410-3 Applications
There are a lot of TE Connectivity AMP Connectors
284410-3 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
