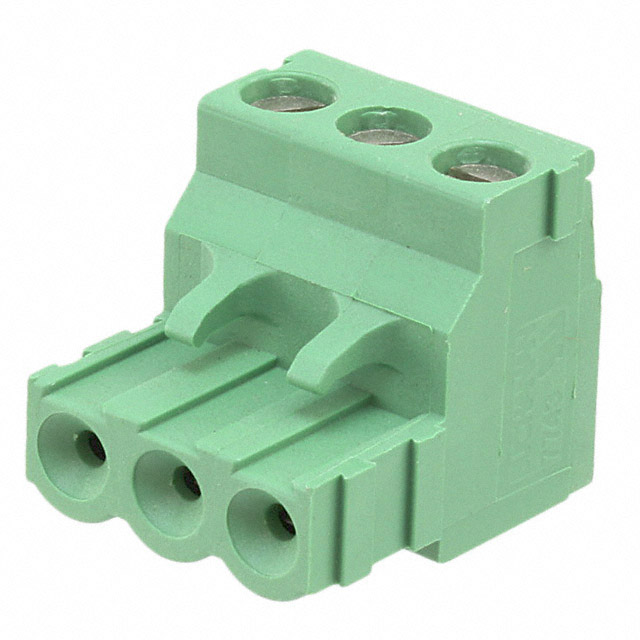

282805-3

Share

Or copy the link below:

Mfr.Part #
282805-3
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
TERM BLOCK PLUG 3POS STR 5MM
Stock
12,703
In Stock :
12,703

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Plugs and Sockets
Housing Color :
Green
Color :
Green
Connector Type :
PLUG
Screw Size :
M3
Number of Levels :
1
Gender :
FEMALE
Number of Positions :
3
Wire Gauge or Range - AWG :
12-30 AWG
Thread Size :
M3
Width :
15.5mm
Factory Lead Time :
13 Weeks
Wire Strip Length :
6-7.5mm
Wire Gauge (Min) :
12 AWG
Number of Circuits :
3
Current - UL :
15A
Contact Plating :
Tin
Contact Mating Finish :
Tin
Orientation :
RIGHT ANGLE
Insulation Height :
0.610 15.49mm
ELV :
Compliant
Number of Contacts :
3
Contact Material :
Phosphor Bronze
Current Rating :
15A
RoHS Status :
RoHS Compliant
Voltage - UL :
300V
Pitch :
0.197 5.00mm
Operating Temperature :
-40°C~110°C
Torque - Screw :
0.79 Nm (7.0 Lb-In)
Flammability Rating :
UL94 V-0
Wire Gauge or Range - mm² :
0.05-3mm2
Max Current Rating :
15A
Mount :
Free Hanging, Through Hole
Wire Gauge (Max) :
30 AWG
Length :
15.5mm
Termination Style :
Screw - Rising Cage Clamp
Number of Rows :
1
Series :
Buchanan
Packaging :
Bulk
Radiation Hardening :
No
Published :
2002
Voltage - Rated :
300V
Lead Free :
Not Applicable
Voltage :
300V
Feature :
Interlocking (Side), Retention Latches (Non-Wire Side)
Housing Material :
Polyamide (PA66), Nylon 6/6
Mounting Type :
Free Hanging (In-Line)
Lifecycle Status :
ACTIVE (Last Updated: 5 days ago)
Positions Per Level :
3
Depth :
18.4mm
Plug Wire Entry :
180°
Current :
15A
Material Flammability Rating :
UL94 V-0
Type :
Plug, Female Sockets
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Termination :
Screw
Number of Positions Per Level :
3
Number of Poles :
3
Datasheets
282805-3
Introducing Headers, Plugs and Sockets TE Connectivity AMP Connectors 282805-3 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~110°C, Voltage:300V, Mounting Type:Free Hanging (In-Line), Type:Plug, Female Sockets, 282805-3 pinout, 282805-3 datasheet PDF, 282805-3 amp .Beyond Headers, Plugs and Sockets TE Connectivity AMP Connectors 282805-3 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 282805-3


Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze

282805-3 Overview


This product is packaged in a Plug box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Buchanan Series.In many ways, Interlocking (Side), Retention Latches (Non-Wire Side) makes it more powerful.By Free Hanging, Through Hole, the part is mounted.It consists of 3 circuits.Operating temperature is set to -40°C~110°C.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

282805-3 Features


Buchanan series


282805-3 Applications


There are a lot of TE Connectivity AMP Connectors
282805-3 Terminal Blocks applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
