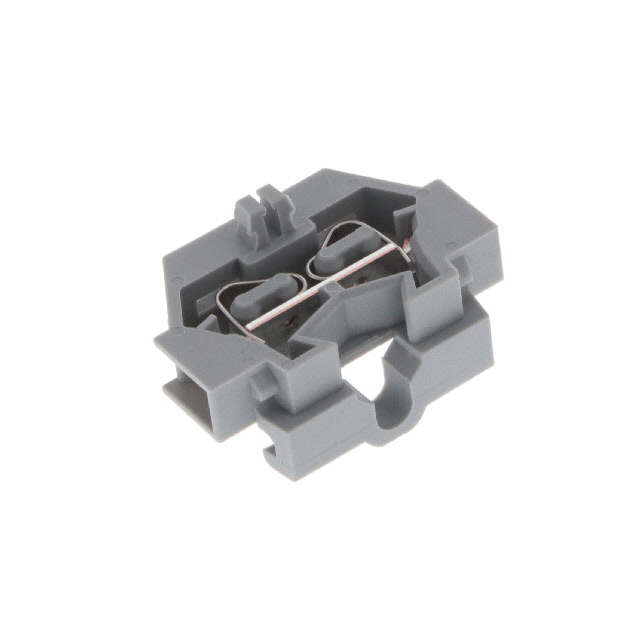

260-301

Manufacturer :

WAGO

Product Category :

Specialized

Cross section (flexible) (max.) :

1.50mm²

Mounting Type :

Flange, Snap-In

Wire Gauge or Range - mm² :

0.08-1.5mm²

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 1.5

Rated Current :

18A

Series :

260

Min. stripping length :

8mm

Cross section (inflexible) (max.) :

1.50mm²

Terminal - Width :

5.0mm

Color :

Gray

Width :

5mm

Cross section (inflexible) (min.) :

0.08mm²

Transparent :

No

Material Flammability Rating :

UL94 V-0

Pins :

2-conductors

RoHS :

yes

Connectable conductor cross section multi-wired :

0.08 - 1.5

Pins per row :

2

Manufacturer part # :

260-301

Termination Style :

Push In, Spring

Operating Temperature :

-

Cross section (flexible) (min.) :

0.08mm²

Stripping Length :

8mm ~ 9mm

Voltage Rating :

400 V

Current Rating :

18A

Length :

25mm

Stripping length (max.) :

9mm

Type :

2-conductor single terminal

Dim :

(L x W x H) 25 x 5 x 17 mm

Base Product Number :

260

Features :

+ sleeve

Height (Max) :

0.669 (17.00mm)

No. of rows :

1

Nominal current (details) :

18A

Nominal voltage :

400V

Termination Method :

Clamp

Nominal current - rounded value :

18A

AWG (min.) :

28

Clamp width :

5mm

Number of Circuits :

1

Inflammability class of insulation material according to with UL94 :

V0

Material - Insulation :

Polyamide (PA66), Nylon 6/6

AWG max. :

16

Current - IEC :

18 A

Height :

17mm

Product Status :

Active

Number of Positions :

2

Manufacturer :

Wago

Rated current In :

18

Configuration :

L

Nominal current :

18A

Connectable conductor cross section solid-core :

0.08 - 1.5

Rated Voltage :

400V

Wire Gauge or Range - AWG :

16-28 AWG

Content :

1pc(s)

Number of Levels :

Single

Depth :

17.1

Package :

Bulk

Housing Color :

Gray

Voltage - IEC :

400 V

Connection :

-
