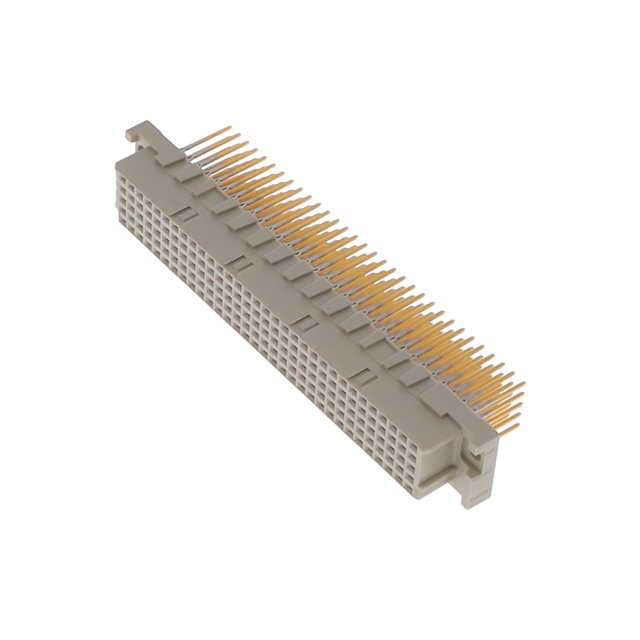

254975

Manufacturer :

TE Connectivity

Product Category :

DIN 41612

Pitch (mm) :

2.54(mm)

Option :

GENERAL PURPOSE

MIL Conformance :

No

Reference Standard :

UL, CSA

Mounting Style :

Through Hole

Dielectric Withstanding Voltage :

1400VAC V

Terminal Length :

0.512 inch

Body/Shell Style :

PLUG

Mounting Option 1 :

HOLE .099-.111

Type :

DIN 41612

Manufacturer :

ERNI

Contact Style :

SQ PIN-SKT

Contact Plating :

Gold

Subcategory :

Headers and Edge Type Connectors

Number of Contacts :

160(POS)

Filter Feature :

No

Pbfree Code :

yes

Rated Current (Signal) :

2 A

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

STANDARD: DIN 41612, IEC 60603-2

Current Rating (Max) :

2(A)

Product Depth (mm) :

15.7(mm)

Contact Material :

COPPER ALLOY

Mating Contact Row Spacing :

0.1 inch

Body Breadth :

0.618 inch

PCB Contact Row Spacing :

2.54 mm

Mounting Option 2 :

LOCKING

Mounting Type :

BOARD

Gender :

F

DIN Conformance :

yes

Reliability :

COMMERCIAL

Name of Rows Loaded :

A,B,C,D,E

Contact Gender :

FEMALE

Connector Type :

BOARD EURO CONNECTOR

Product Length (mm) :

95(mm)

Contact Resistance :

20 mΩ

HTS Code :

8536.69.40.40

Termination Method :

Press Fit

Termination Type :

Press Fit

Contact Resistance Max :

25(mohm)

Mating Contact Pitch :

0.1 inch

Insulation Resistance :

10000000000 Ω

Total Number of Contacts :

160

ECCN Code :

EAR99

Polarization Key :

POLARIZED HOUSING

Housing Material :

Polybutylene Terepht

Body Orientation :

Straight

Reach Compliance Code :

Compliant

Mixed Contacts :

No

IEC Conformance :

No

Number of Contact Rows :

5

Terminal Pitch :

2.54 mm

Number Of PCB Rows :

5

Insertion Force-Max :

.695 N

Body Depth :

0.457 inch

Product Height (mm) :

11.6(mm)

Durability :

400 Cycles

Operating Temp Range :

-55C to 125C
