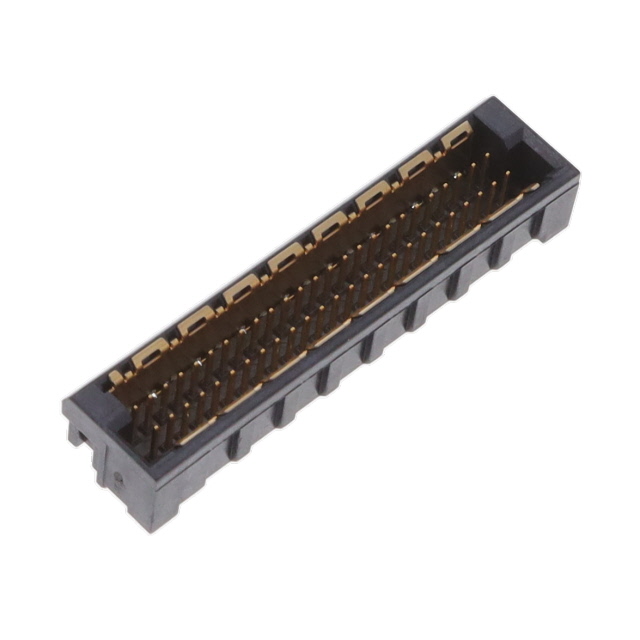

254877

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Contact Gender :

Male

Number of Contacts :

50(POS)

Mating Contact Pitch :

0.039 inch

Option :

GENERAL PURPOSE

Contact Style :

SQ PIN-SKT

Reliability :

COMMERCIAL

HTS Code :

8536.69.40.40

Contact Plating :

Gold

Type :

Board to Board

Body Depth :

0.189 inch

Termination Type :

Surface Mount

Polarization Key :

POLARIZED HOUSING

Termination Method :

Solder

Product Depth (mm) :

6.75(mm)

IEC Conformance :

No

Contact Resistance Max :

25(mohm)

Mounting Option 1 :

LOCKING

Packaging :

Tape and Reel

Body/Shell Style :

Receptacle

Pitch (mm) :

1(mm)

Filter Feature :

No

Body Breadth :

0.266 inch

Product Height (mm) :

6.37(mm)

Operating Temp Range :

-55C to 125C

Mixed Contacts :

No

Reach Compliance Code :

Compliant

Subcategory :

Headers and Edge Type Connectors

Number of Contact Rows :

2

Mounting Type :

BOARD

PCB Contact Pattern :

RECTANGULAR

Body Orientation :

Straight

ECCN Code :

EAR99

Number Of PCB Rows :

2

Contact Material :

COPPER ALLOY

MIL Conformance :

No

Gender :

M

Mounting Style :

Straight

Product Length (mm) :

28.95(mm)

Board Mounting Option :

PEG

Total Number of Contacts :

50

Terminal Pitch :

1 mm

Additional Feature :

POLARIZED

Connector Type :

BOARD STACKING CONNECTOR

Manufacturer :

ERNI

PCB Contact Row Spacing :

1.5 mm

Reference Standard :

UL

Mating Contact Row Spacing :

0.059 inch

DIN Conformance :

No

UL Flammability Code :

94V-0

Contact Pattern :

RECTANGULAR

Pbfree Code :

yes
