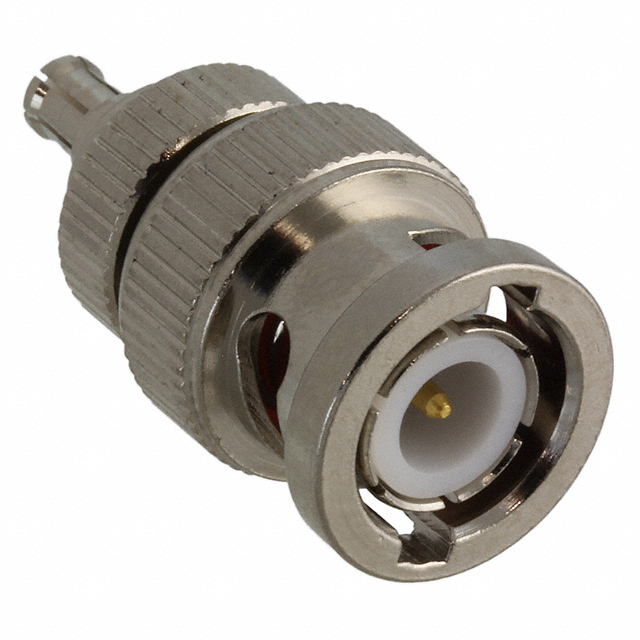

242205

Share

Or copy the link below:

Mfr.Part #
242205
Manufacturer
Amphenol RF
Package / Case
Datasheet
Download
Description
CONN ADAPT BNC PLUG TO MCX PLUG
Stock
13,479
In Stock :
13,479

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Amphenol RF
Product Category :
Coaxial Connector (RF) Adapters
Body Material :
Brass
Contact Material :
Copper
Convert From (Adapter End) :
BNC Plug, Male Pin
Center Gender :
Male to Male
Mounting Type :
Free Hanging (In-Line)
Resistance :
50Ohm
Convert To (Adapter End) :
MCX Plug, Male Pin
Impedance :
50Ohm
Frequency (Max) :
4GHz
Length :
25.88mm
Fastening Type :
Bayonet Lock, Snap-On
Factory Lead Time :
10 Weeks
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Published :
2004
Dielectric Material :
Polytetrafluoroethylene (PTFE)
Polarity :
Normal
Conversion Type :
Between Series
Adapter Series :
BNC to MCX
Insulation Material :
Polytetrafluoroethylene
RoHS Status :
RoHS Compliant
Style :
Straight
Mount :
Free Hanging
Packaging :
Bulk
Operating Temperature :
-65°C~165°C
Termination :
Crimp
Orientation :
Straight
Plating :
Nickel
Adapter Type :
Plug to Plug
Contact Plating :
Gold
Gender Type A :
Male
Gender Type B :
Male
Center Contact Material :
BERYLLIUM COPPER
Number of Contacts :
1
Center Contact Plating :
Gold
Body Finish :
Nickel
Body Plating :
Nickel
Weight :
13.100003g
Introducing Coaxial Connector (RF) Adapters Amphenol RF 242205 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Operating Temperature:-65°C~165°C, 242205 pinout, 242205 datasheet PDF, 242205 amp .Beyond Coaxial Connector (RF) Adapters Amphenol RF 242205 ,we also offer 112437, 112443, 031-4803-RFX, Our vast inventory has you covered. Contact us now for immediate solutions.

Amphenol RF 242205
