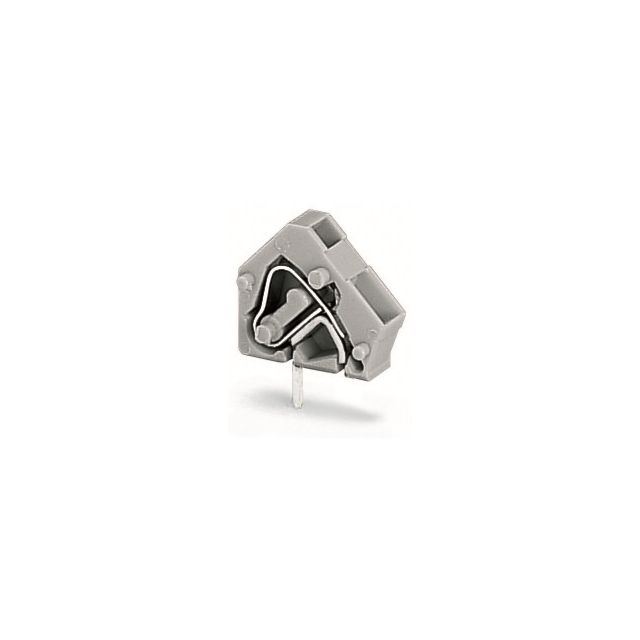

236-101
- Mfr.Part #
- 236-101
- Manufacturer
- WAGO
- Package / Case
- Datasheet
- Download
- Description
- STACKABLE PCB TERMINAL BLOCK; 2.
- Stock
- 86
- In Stock :
- 86
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- WAGO
- Product Category :
- Wire to Board
- Connection :
- Spring-loaded terminal,Print
- Cross section (inflexible) (min.) :
- 0.08mm²
- Clamp Material - Plating :
- Steel - Nickel Plated
- AWG (min.) :
- 28
- Type :
- PCB terminal block 45° 1P 24A RM5/5,08 grey
- Packaging type :
- Other
- Cross section (flexible) (max.) :
- 2.50mm²
- Wire protection :
- yes
- Inflammability class of insulation material according to with UL94 :
- V0
- Actuation direction :
- At an angle (to the PCB)
- Connection Type :
- Spring Clamp
- Color :
- Gray
- Enclosure material :
- Polyamide
- Number of Levels :
- 1
- Nominal voltage :
- 320V
- Series :
- 236
- Connectable conductor cross section fine-strand without cable end sleeve :
- 0.08 - 2.5
- Rated current In :
- 24
- Connectable conductor cross section solid-core :
- 0.08 - 2.5
- Length :
- 7.20mm
- Rated surge voltage :
- 4
- Current :
- 15 A
- Pins per row :
- 1
- Contact Material - Plating :
- Electrolytic Copper - Tin Plated
- Connectable conductor cross section multi-wired :
- 0.08 - 2.5
- Width :
- 17.00mm
- Wire Gauge :
- 12-28 AWG
- Min. stripping length :
- 5mm
- Pin Length :
- 4 MilliMeters
- Screw Thread :
- -
- Package :
- Box
- Operating Temperature :
- -60°C ~ 105°C
- Features :
- + CAGE CLAMP®
- Cross section (flexible) (min.) :
- 0.08mm²
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Nominal current :
- 24A
- Torque - Screw :
- -
- Product Status :
- Active
- Nominal current - rounded value :
- 24A
- Positions Per Level :
- 1
- Manufacturer part # :
- 236-101
- Manufacturer :
- Wago
- Temperature Range :
- -76 to 221 Degrees F
- No. of rows :
- 1
- Voltage :
- 300 V
- Approvals :
- CSA;UL
- Pitch :
- -
- Connectable conductor cross section fine-strand with cable end sleeve :
- 0.25 - 1.5
- Number of Poles :
- 1
- RoHS :
- yes
- AWG max. :
- 12
- Screw Material - Plating :
- -
- Mating Orientation :
- 45° (135°) Angle with Board
- Cross section (inflexible) (max.) :
- 2.50mm²
- Over voltage category :
- III
- Wire Termination :
- Screwless - Spring Cage, Tension Clamp
- Height :
- 14.00mm
- Content :
- 600pc(s)
- Type of fastening :
- Solder
- CS :
- 5mm,5.08mm
- Stripping length (max.) :
- 6mm
- Industrial packaging :
- yes
- Mounting Type :
- PCB Mount
- Pollution degree :
- 2
- Composition :
- Polyamide
- Datasheets
- 236-101
236-101 Documents

236-101 datasheet pdf and Barrel - Audio Connectors product details from WAGO stock available at Xinshop
