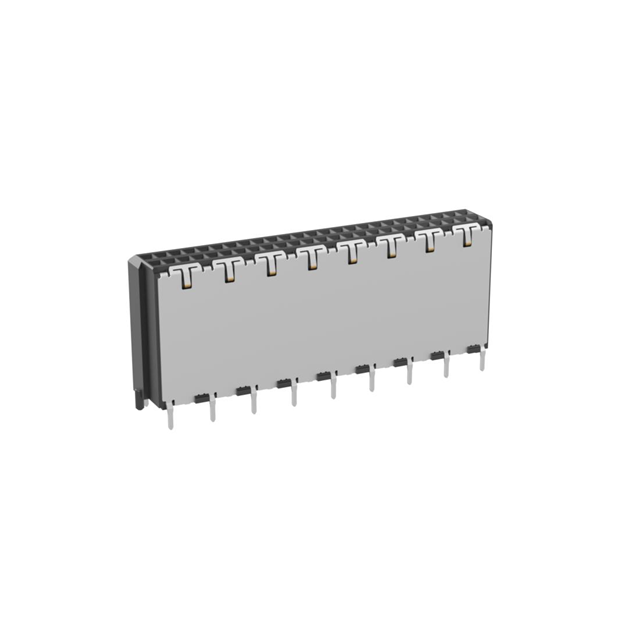

224517

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Subcategory :

Headers and Edge Type Connectors

Product Depth (mm) :

5.5(mm)

Reach Compliance Code :

Compliant

Insertion Force-Max :

.5004 N

Contact Material :

NOT SPECIFIED

Terminal Pitch :

1 mm

ECCN Code :

EAR99

Number of Contact Rows :

2

Product Length (mm) :

26.55(mm)

Manufacturer :

ERNI

Contact Style :

SQ PIN-SKT

Body Depth :

0.385 inch

Durability :

500 Cycles

PCB Contact Row Spacing :

1.4986 mm

Dielectric Withstanding Voltage :

500VAC V

HTS Code :

8536.69.40.40

Reference Standard :

UL

Board Mounting Option :

PEG

Contact Finish Termination :

Tin (Sn)

Contact Gender :

FEMALE

Contact Resistance :

25 mΩ

Mating Contact Pitch :

0.039 inch

Body Orientation :

Straight

Pbfree Code :

yes

Polarization Key :

POLARIZED HOUSING

Number of Contacts :

50(POS)

Option :

GENERAL PURPOSE

Filter Feature :

No

Rated Current (Signal) :

1 A

Mounting Type :

BOARD

Mounting Option 1 :

LOCKING

Type :

Socket Strip

Packaging :

Tape and Reel

Insulation Resistance :

10000000000 Ω

Mixed Contacts :

No

Mounting Style :

Through Hole

MIL Conformance :

No

Body Breadth :

0.164 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

RoHS Compliant

Gender :

SKT

Connector Type :

BOARD CONNECTOR

Pitch (mm) :

2(mm)

Total Number of Contacts :

50

Termination Type :

SOLDER AND SURFACE MOUNT

IEC Conformance :

No

Mating Contact Row Spacing :

0.059 inch

DIN Conformance :

No

Contact Pattern :

RECTANGULAR

Plating Thickness :

4u inch

Product Height (mm) :

10.5(mm)

Body/Shell Style :

PLUG

Termination Method :

Solder

Number Of PCB Rows :

2

JESD-609 Code :

e3
