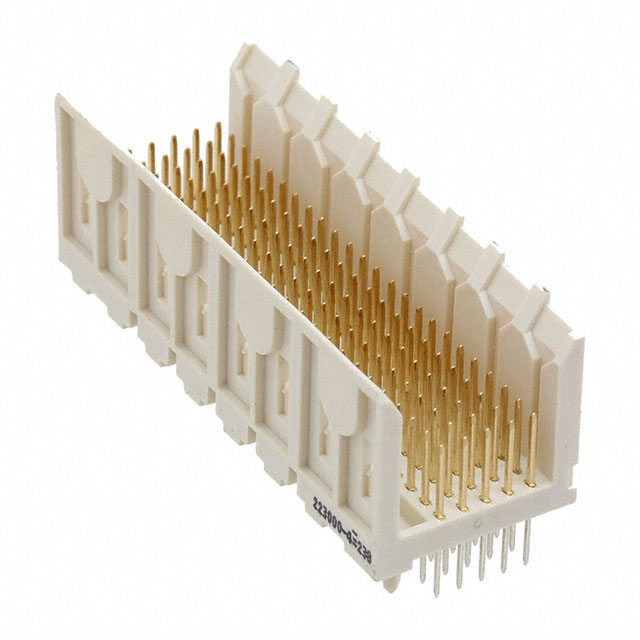

223000-4
Or copy the link below:
- Mfr.Part #
- 223000-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER FUTUREBUS 120POS PCB
- Stock
- 10,938
- In Stock ：
- 10,938
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Termination :
- Solder
- IEC Conformance :
- No
- Number of Positions :
- 120
- Packaging :
- Tube
- Number of Conductors :
- ONE
- Mixed Contacts :
- No
- MIL Conformance :
- No
- Connector Type :
- Header, Male Pins
- Option :
- GENERAL PURPOSE
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Plating Thickness :
- 3.81μm
- Mating Post Length :
- 6.5mm
- Body/Shell Style :
- Receptacle
- ECCN Code :
- EAR99
- Row Spacing :
- 2 mm
- Mount :
- Through Hole
- Gender :
- Male
- RoHS Status :
- Non-RoHS Compliant
- Number of Positions Loaded :
- All
- Pbfree Code :
- No
- Lead Length :
- 4.2418mm
- Connector Style :
- Futurebus
- Reliability :
- COMMERCIAL
- Polarization Key :
- POLARIZED HOUSING
- Body Breadth :
- 0.701 inch
- Max Voltage Rating (AC) :
- 30V
- Length - Tail :
- 4.25mm
- Published :
- 2005
- Feature :
- Board Guide
- Contact Current Rating :
- 3A
- Width :
- 18mm
- Voltage - Rated AC :
- 30V
- Pitch :
- 0.079 2.00mm
- Total Number of Contacts :
- 120
- Factory Lead Time :
- 32 Weeks
- Orientation :
- Vertical
- Mounting Type :
- Through Hole
- Body Depth :
- 0.669 inch
- Filter Feature :
- No
- Contact Material :
- Bronze
- Housing Material :
- Polymer
- Series :
- Z-PACK
- Contact Pattern :
- RECTANGULAR
- UL Flammability Code :
- 94V-0
- DIN Conformance :
- No
- Contact Finish :
- Gold
- Color :
- Natural
- Number Of PCB Rows :
- 5
- Height :
- 17mm
- Number of Rows :
- 5
- PCB Contact Pattern :
- RECTANGULAR
- Number of Signal Positions :
- 120
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Contact Style :
- SQ PIN-SKT
- Operating Temperature :
- -55°C~125°C
- Datasheets
- 223000-4
