22-01-1114

Share

Or copy the link below:

Mfr.Part #
22-01-1114
Manufacturer
Molex
Package / Case
Datasheet
Download
Description
11CKT MINI SPOX HOUSING 51
Stock
4,045
In Stock :
4,045

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Rectangular Connector Housings
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Connector Type :
Receptacle, Socket
ECCN Code :
EAR99
Polarization Key :
POLARIZED RIB(S)
Lead Free :
Lead Free
Wire Size (Max) :
22 AWG
Option :
GENERAL PURPOSE
Rated Current (Signal) :
3A
Orientation :
Straight
Pitch :
2.5mm
Mixed Contacts :
No
Reference Standard :
UL, CSA
Mount :
Cable, Free Hanging
Additional Feature :
SPOX, COMPATIBLE CONTACTS: 08-70-0056; 08-70-0057; 08-70-0058; 08-70-0059, FRICTION LOCK, LOW PROFILE
MIL Conformance :
No
Contact Finish - Mating :
NOT SPECIFIED
DIN Conformance :
No
RoHS Status :
RoHS Compliant
HTS Code :
8536.69.40.40
Contact Pattern :
RECTANGULAR
IEC Conformance :
No
Packaging :
Bulk
Contact Gender :
FEMALE
Filter Feature :
No
Current Rating :
3A
Contact Resistance :
20mOhm
Reach Compliance Code :
Unknown
Number of Contacts :
11
UL Flammability Code :
94V-0
Body/Shell Style :
PLUG
Min Operating Temperature :
-40°C
Housing Material :
Nylon
Fastening Type :
Ramp
Contact Material :
NOT SPECIFIED
Glow Wire Compliant :
Non-Compliant
Max Operating Temperature :
105°C
Voltage - Rated :
250V
Wire Size (Min) :
28 AWG
Body Breadth :
0.26 inch
Number of Rows :
1
Termination :
Crimp
Reliability :
COMMERCIAL
Color :
Natural
Datasheets
22-01-1114
Introducing Rectangular Connector Housings Molex 22-01-1114 from Chip IC,where excellence meets affordability. This product stands out with its 22-01-1114 pinout, 22-01-1114 datasheet PDF, 22-01-1114 amp .Beyond Rectangular Connector Housings Molex 22-01-1114 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

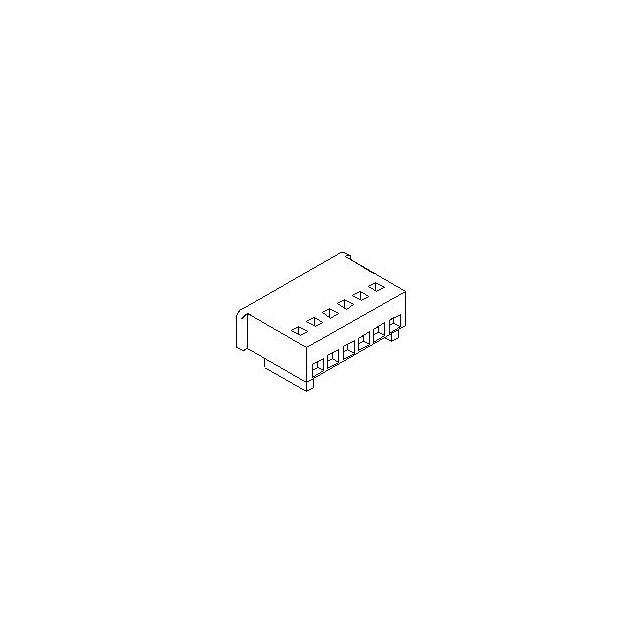

Molex 22-01-1114


1 Rows Receptacle, Socket Bulk Natural Nylon

22-01-1114 Overview


Packaging is in the form of Receptacle, Socket.An orange Bulk case is used to package the product.Other features include SPOX, COMPATIBLE CONTACTS: 08-70-0056; 08-70-0057; 08-70-0058; 08-70-0059, FRICTION LOCK, LOW PROFILE, to name just a few.There is a mounting hole at Cable, Free Hanging.

22-01-1114 Features




22-01-1114 Applications


There are a lot of Molex
22-01-1114 Rectangular Connectors applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
