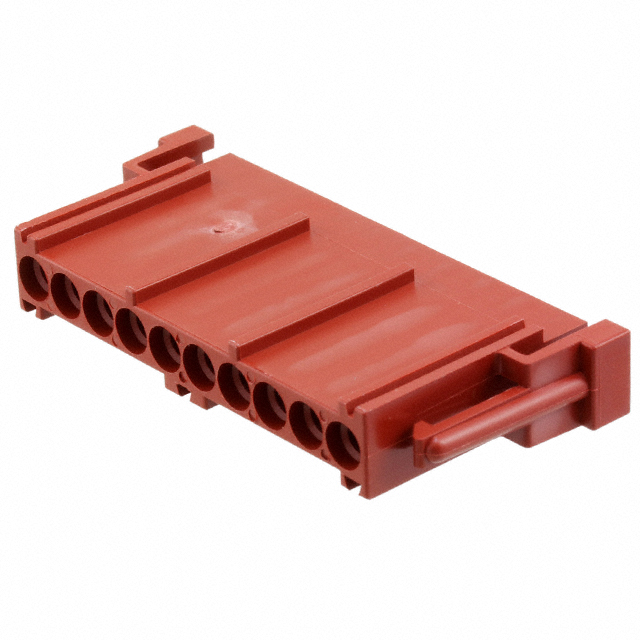

208404-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Wire/Cable Type :

Discrete

Color :

Black or Red

Fastening Type :

Latch Lock

Housing Color :

Red

Feature :

Polarizing Key

Housing Material :

Nylon

Mounting Type :

Free Hanging (In-Line)

Width :

9.14mm

Number of Positions :

10

RoHS Status :

RoHS Compliant

Shell Material :

POLYETHYLENE

Published :

1997

Filter Feature :

No

DIN Conformance :

No

VDE Tested :

yes

Body Breadth :

0.36 inch

ECCN Code :

EAR99

Reliability :

COMMERCIAL

Gender :

Male

Contact Finish - Mating :

NOT SPECIFIED

Min Operating Temperature :

-55°C

Contact Type :

Female Socket

Contact Material :

NOT SPECIFIED

Approval Agency :

UL

Pbfree Code :

yes

Empty Shell :

yes

Max Voltage Rating (AC) :

600V

Lifecycle Status :

ACTIVE (Last Updated: 4 months ago)

ELV :

Compliant

Number of Rows :

1

MIL Conformance :

No

Note :

Contacts Not Included

Orientation :

Straight

Lead Free :

Not Applicable

Length :

63.5mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Supply Voltage :

600V

Contact Termination :

Crimp and Solder

IEC Conformance :

No

Depth :

28.19mm

Termination :

Crimp

Max Operating Temperature :

130°C

HTS Code :

8536.69.40.30

Series :

Metrimate

Connector Type :

PLUG

Mixed Contacts :

No

UL Flammability Code :

94V-0

Flammability Rating :

UL94 V-0

Factory Lead Time :

18 Weeks

Pitch :

0.200 5.08mm

Total Number of Contacts :

10

Additional Feature :

POLARIZED, LATCH

Packaging :

Bulk

Option :

GENERAL PURPOSE

Mount :

Cable, Free Hanging

Number of Conductors :

ONE
