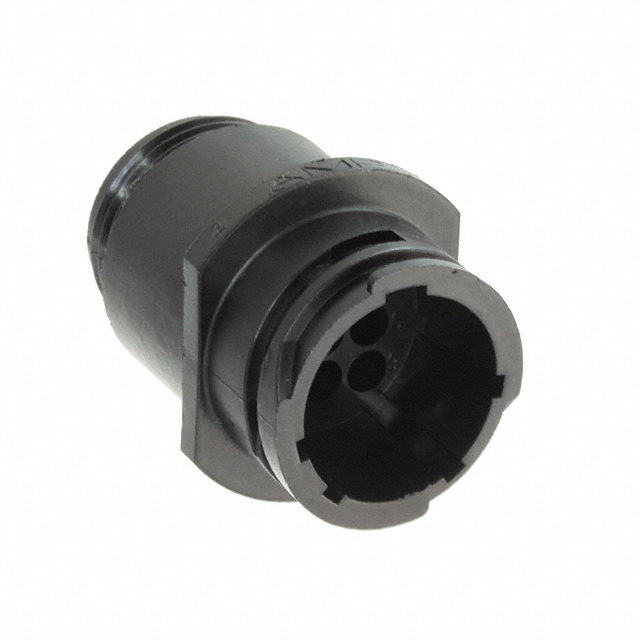

206705-2
Or copy the link below:
- Mfr.Part #
- 206705-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG MALE 9POS INLINE
- Stock
- 76
- In Stock ：
- 76
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Housings
- Housing Material :
- Thermoplastic
- MIL Conformance :
- No
- Fastening Type :
- Threaded
- Number of Power Positions :
- 0
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Type :
- For Male Pins
- Mounting Type :
- Free Hanging (In-Line)
- Pbfree Code :
- yes
- Contact Size :
- 16
- Published :
- 1997
- Flammability Rating :
- UL94 V-0
- Depth :
- 27.23mm
- Material :
- Plastic
- Note :
- Contacts Not Included
- Ratings :
- IP65
- Series :
- CPC Series 1
- Shielding :
- Unshielded
- Voltage - Rated AC :
- 250V
- Lead Free :
- Lead Free
- Housing Color :
- Black
- Shell Size - Insert :
- 13-9
- Contact Gender :
- Male
- IEC Conformance :
- No
- Max Voltage Rating (AC) :
- 250V
- Gender :
- Receptacle
- Empty Shell :
- yes
- Mount :
- Cable, Free Hanging
- Contact Type :
- Crimp
- Voltage - Rated :
- 250V
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Filter Feature :
- No
- Current Rating :
- 13A
- Operating Supply Voltage :
- 600V
- Packaging :
- Bulk
- Insulation Resistance :
- 5GOhm
- Orientation :
- A
- Sealable :
- No
- Length :
- 34.29mm
- Mating Retention :
- With
- Number of Terminations :
- 9
- REACH SVHC :
- No SVHC
- Contact Shape :
- Circular
- Number of Ports :
- 1
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Total Number of Contacts :
- 9
- ELV :
- Compliant
- Operating Temperature :
- -55°C~105°C
- Factory Lead Time :
- 4 Weeks
- Shell Material :
- Polyamide (PA), Nylon
- Connector Type :
- Receptacle Housing
- Datasheets
- 206705-2
Receptacle Housing Polyamide (PA), Nylon Free Hanging (In-Line) Bulk Threaded Unshielded Contacts Not Included CPC Series 1
206705-2 Overview
The product comes in a package of Receptacle Housing.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the CPC Series 1 Series.There are many similarities between this part and other For Male Pins products.For mounting this part, a Cable, Free Hanging socket is required.The device has 1 ports for managing a variety of tasks.The term 9 termination refers to the practice of terminating a transmission line with a device that matches the characteristic impedance of the transmission line.
206705-2 Features
9 basic kinds of terminations
CPC Series 1 series
206705-2 Applications
There are a lot of TE Connectivity AMP Connectors
206705-2 Circular Connectors applications.
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
