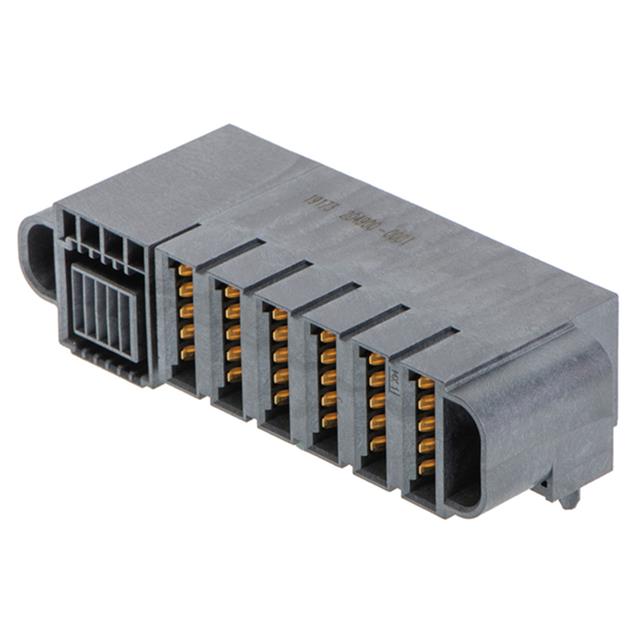

2049000002
Or copy the link below:
- Mfr.Part #
- 2049000002
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- ENERGETIC RA RECEPT. ASSY G+4P+2
- Stock
- 8,617
- In Stock ：
- 8,617
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Current Rating (Amps) :
- -
- Connector Style :
- -
- Connector Usage :
- -
- Number of Positions Loaded :
- All
- Housing Color :
- Black
- Contact Gender :
- Socket (Female)
- Color :
- Black
- Mounting Angle :
- RIGHT ANGLE
- Package :
- Bulk
- Contact Finish :
- Gold
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Contact Layout, Typical :
- 25 Signal, 4 Power
- Contact Material :
- Tin
- Maximum Operating Temperature :
- + 105 C
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Product Status :
- Active
- Termination :
- Solder
- Series :
- 204900
- Insulation Resistance :
- 5000 MOhms
- Voltage Rating :
- 600 V
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Receptacle, Female Sockets and Blade Sockets
- Contact Plating :
- Gold
- Minimum Operating Temperature :
- - 40 C
- Number of Positions :
- 29 Position
- Termination Style :
- Solder Pin
- Operating Temperature :
- -40°C ~ 105°C
- Number of Columns :
- -
- Base Product Number :
- 204900
- Current Rating :
- 100 A
- RoHS :
- Details
- Mounting Type :
- Through Hole, Right Angle
- Features :
- Board Lock
- Number of Rows :
- 5 Row
- Tradename :
- EXTreme EnergetiC
- Pitch :
- 7.65 mm
- Mounting Style :
- PCB Mount
- Datasheets
- 2049000002
2049000002 Documents
204900 Series Receptacle, Female Sockets and Blade Sockets Solder Gold Black 30.0µin (0.76µm) 29 Position Positions Pitch: 7.65 mm -40°C ~ 105°C Through Hole, Right Angle
204900-0002 Overview
This product is packaged in a Receptacle, Female Sockets and Blade Sockets box.Through Hole, Right Angle indicates that the device is mounted.The product is a part of the 204900 Series.Operating temperature is set to -40°C ~ 105°C.
204900-0002 Features
204900 series
204900-0002 Applications
There are a lot of Molex
204900-0002 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
