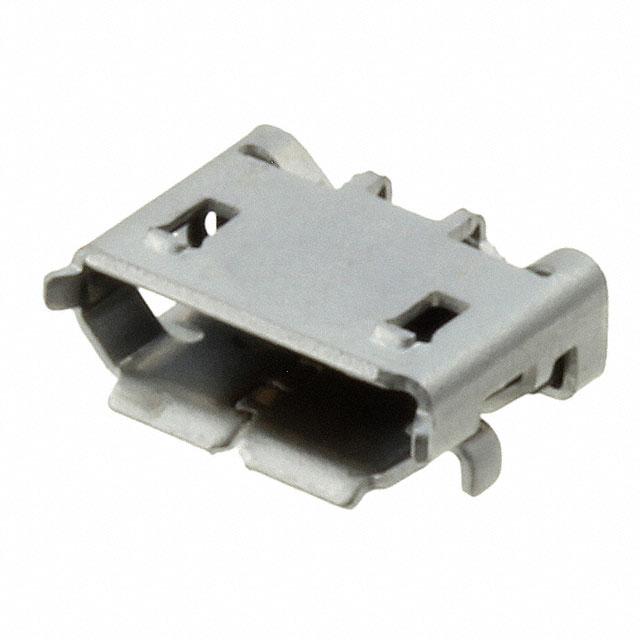

2013499-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

USB, DVI, HDMI Connector Assemblies

Shielding :

Unshielded

Shell Material :

Stainless Steel

UL Flammability Code :

94V-0

Polarization Key :

POLARIZED HOUSING

Contact Material :

Gold, Nickel

USB :

USB 2.0

Mating Cycles :

10000

Mixed Contacts :

No

Gender :

Receptacle

Body Depth :

0.22 inch

Material Flammability Rating :

UL94 V-0

Shell/Shielding Material :

Steel, Stainless

Plating :

Nickel, Tin

Number Of PCB Rows :

1

Packaging :

Tape and Reel (TR)

Number of Conductors :

ONE

Color :

Black

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

PCB Contact Pattern :

RECTANGULAR

Length :

8mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Solder Retention

Current Rating (Amps) :

0.5A 1A 1.8A

Operating Temperature :

-30°C~85°C

Specifications :

USB 2.0

Voltage - Rated :

30V

Empty Shell :

No

Height :

3.2mm

Number of Contacts :

5

Reliability :

COMMERCIAL

Number of Ports :

1

Contact Style :

USB, SER B SQ

ECCN Code :

EAR99

Orientation :

RIGHT ANGLE

Connector Type :

USB - micro B

Mounting Feature :

Horizontal

Published :

2011

Termination :

Solder

Contact Resistance :

30mOhm

IEC Conformance :

No

MIL Conformance :

No

Current Rating :

1.8A

ELV :

Compliant

Mount :

Horizontal, Surface Mount

Contact Current Rating :

1.8A

Reference Standard :

UL

DIN Conformance :

No

Mounting Type :

Surface Mount, Right Angle; Through Hole

Contact Finish :

Gold

Option :

GENERAL PURPOSE

Circuit Application :

Power

Shell Finish :

TIN-NICKEL

Factory Lead Time :

9 Weeks

RoHS Status :

RoHS Compliant

REACH SVHC :

Unknown

Pitch :

635μm

Filter Feature :

No

Housing Material :

Thermoplastic

Pbfree Code :

yes
