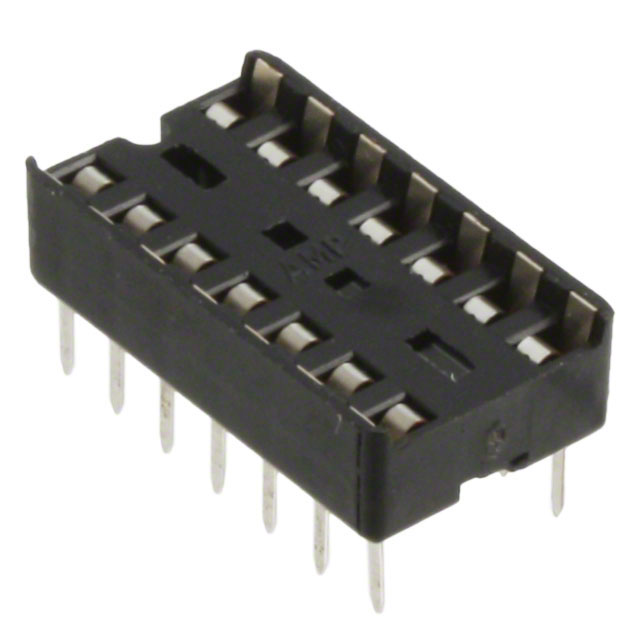

2-640357-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

IC Sockets

Number of Rows :

2

Gender :

FEMALE

Contact Finish - Mating :

Gold

Pbfree Code :

No

Number of Contacts :

14

Published :

2002

ELV :

Non-Compliant

Pitch - Post :

0.100 2.54mm

Radiation Hardening :

No

Contact Material - Mating :

Phosphor Bronze

Mounting Type :

Through Hole

Flammability Rating :

UL94 V-0

Termination :

Solder

HTS Code :

8536.69.40.40

Contact Material :

Bronze

Depth :

10mm

Packaging :

Tube

Mount :

Vertical

Number of Positions :

14

Color :

Black

Additional Feature :

DIPLOMATE, UL 94V-0

Number of Positions or Pins (Grid) :

14 (2 x 7)

Contact Resistance :

30mOhm

Insulation Resistance :

10GOhm

Feature :

Closed Frame

Termination Post Length :

0.128 3.24mm

Housing Material :

Thermoplastic, Glass Filled

Length :

17.65mm

Material Flammability Rating :

UL94 V-0

Contact Material - Post :

Phosphor Bronze

Contact Finish Thickness - Mating :

15.0μin 0.38μm

Insulation Material :

Thermoplastic

Type :

DIP, 0.3 (7.62mm) Row Spacing

Series :

Diplomate DL

ECCN Code :

EAR99

Lead Length :

3.25mm

Operating Temperature :

-55°C~105°C

Pitch - Mating :

0.100 2.54mm

Orientation :

Straight

Row Spacing :

7.87 mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

Non-RoHS Compliant

JESD-609 Code :

e4

Lead Free :

Contains Lead

Contact Finish Thickness - Post :

15.0μin 0.38μm

Lead Pitch :

2.54mm
