Mfr.Part #
2-5177986-4
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN PLUG 100POS SMD GOLD
Stock
896
In Stock :
896

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Arrays, Edge Type, Mezzanine (Board to Board)
IEC Conformance :
No
Number of Positions :
100
Contact Style :
Compression
Housing Material :
Polymer
PCB Mount Retention :
Without
Max Operating Temperature :
125°C
Min Operating Temperature :
-40°C
ECCN Code :
EAR99
Contact Finish Thickness :
8.00μin 0.203μm
Mounting Type :
Surface Mount
Housing Color :
Natural
Sealable :
No
Height Above Board :
0.270 6.85mm
Number of Rows :
2
Total Number of Contacts :
100
Termination :
SMD/SMT
MIL Conformance :
No
Rated Current (Signal) :
0.5A
Pitch :
0.031 0.80mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Voltage - Rated :
100V
Depth :
6mm
Reference Standard :
UL
Height :
7mm
Length :
45.8mm
Number of Conductors :
ONE
Mixed Contacts :
No
Packaging :
Tape and Reel (TR)
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Published :
2006
Operating Supply Voltage :
100V
Dielectric Withstanding Voltage :
500VAC V
Stack Height (Mating) :
7mm 11mm 15mm 19mm
Orientation :
Vertical
Mount :
Surface Mount
RoHS Status :
RoHS Compliant
Filter Feature :
No
Insertion Force-Max :
.8896 N
Series :
Free Height (FH)
Contact Finish Thickness - Mating :
203.2 nm
Circuit Application :
Signal
PCB Contact Pattern :
RECTANGULAR
Contact Finish :
Gold
Stack Height :
18.9992mm
Polarization Key :
ENDS
Max Voltage Rating (AC) :
100V
Contact Resistance :
30mOhm
Current Rating :
500mA
Contact Gender :
Male
Contact Material :
Brass
Contact Pattern :
RECTANGULAR
Insulation Resistance :
2MOhm
Feature :
Board Guide
Flammability Rating :
UL94 V-0
Mating Alignment :
With
Additional Feature :
ROHS AND ELV COMPLIANT
Option :
GENERAL PURPOSE
DIN Conformance :
No
Contact Current Rating :
500mA
Row Spacing :
2.4 mm
Connector Type :
Plug, Center Strip Contacts
Plating Thickness :
8μin
Factory Lead Time :
9 Weeks
Reliability :
COMMERCIAL
Preloaded :
yes
JESD-609 Code :
e4
Number Of PCB Rows :
2
HTS Code :
8536.69.40.40
Datasheets
2-5177986-4
Introducing Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 2-5177986-4 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, 2-5177986-4 pinout, 2-5177986-4 datasheet PDF, 2-5177986-4 amp .Beyond Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 2-5177986-4 ,we also offer 5054761010, 5035481222, AXT510124, Our vast inventory has you covered. Contact us now for immediate solutions.

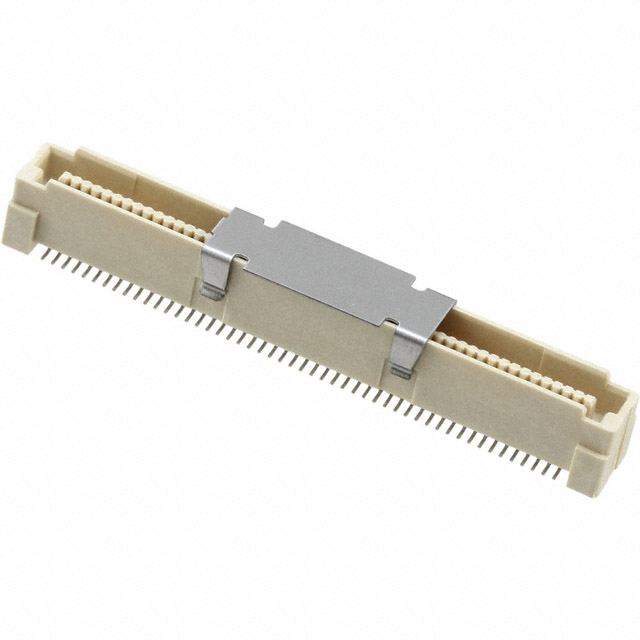

TE Connectivity AMP Connectors 2-5177986-4


Plug, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 100 Positions Free Height (FH) Gold SMD/SMT Brass

2-5177986-4 Overview


The product is packaged in Plug, Center Strip Contacts.It has been determined that a Tape & Reel (TR) case is necessary to package the product.This device is mounted in the Surface Mount position.There is a product in the Free Height (FH) Series.This can be ensured when the system is in operation by maintaining Board Guide.For mounting this component, a Surface Mount socket is required.When the temperature is below 125°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.To name a few, there is also ROHS AND ELV COMPLIANT.Since this device is suitable for operation with a 100V supply, it may be used with this supply as well.

2-5177986-4 Features


Free Height (FH) series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -40°C
Additional Feature: ROHS AND ELV COMPLIANT


2-5177986-4 Applications


There are a lot of TE Connectivity AMP Connectors
2-5177986-4 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
